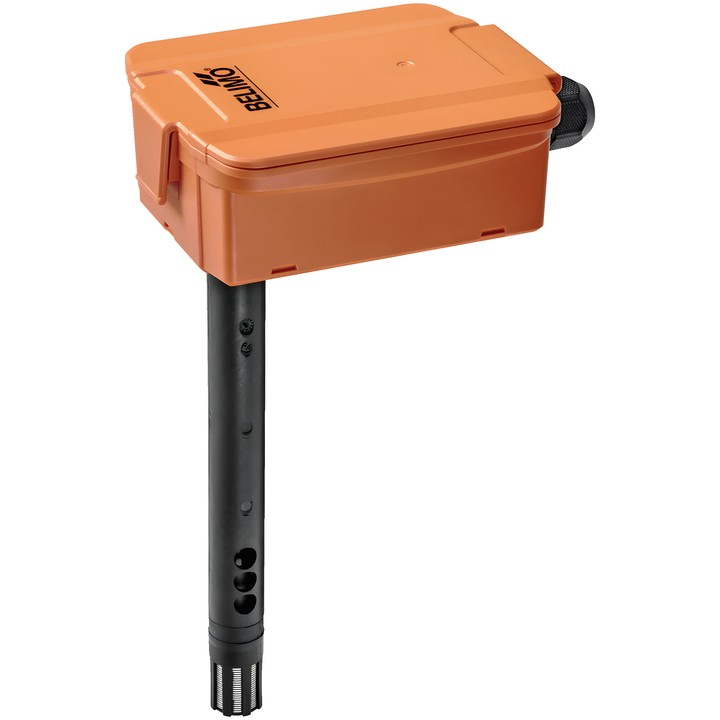

Belimo 22DTC-13 - duct CO₂ and temperature sensor

Name: Belimo 22DTC-13 - duct CO₂ and temperature sensor
Brand: Belimo
SKU: 22DTC-13
Price: 1323.48 PLN
Availability: BackOrder

zł1,323.48

VAT included

zł1,076.00 tax excluded

Active duct sensor for measuring CO₂ and air temperature. AC/DC 24 V supply; 0...5 V, 0...10 V or 4...20 mA output signals for both measured values.

Probe length 180 mm and diameter 19.5 mm. Degree of protection IP65 / NEMA 4X.

Delivery in approx. 14 days

Belimo 22DTC-13 duct CO₂ and temperature sensor

Active sensor for measuring CO₂ concentration and air temperature in a duct. CO₂ measurement uses dual-channel NDIR technology.

Nominal supply: AC/DC 24 V.
Two voltage outputs 0...5 V or 0...10 V, minimum resistance 10 kΩ; two current outputs 4...20 mA, maximum resistance 500 Ω.
0...5/10 V output signal adjustable by jumper.
CO₂ measuring range: factory setting 0...2000 ppm; with A-22G-A05: 0...5000 ppm.
Temperature measuring range: 0...50°C [32...122°F].
CO₂ measurement accuracy: ±(50 ppm + 3% of measured value); temperature measurement accuracy: ±0.3°C @ 25°C [±0.5°F @ 77°F].
Probe length: 180 mm; probe diameter: 19.5 mm.
Degree of protection: IP65 / NEMA 4X.
Electrical connection: pluggable terminal strip with spring terminals, max. 2.5 mm².

An A-22D-A35 mounting flange is included. Configuration using the Belimo Duct Sensor Assistant App requires the A-22G-A05 Bluetooth dongle.

Electrical connection

Terminals
Measured values

CO₂ Temperature
Output signal

0...5 V 0...10 V 4...20 mA
Probe length

180 mm
AC/DC voltage

AC/DC 24 V
Temperature measuring range

0...50°C [32...122°F]
Active sensor output note

Output signal 0...5/10 V adjustable via jumper
Output voltage range [Range]

1 x 0...5 V, 0...10 V, min. resistance 10 kΩ (Type 22DC-13) 2 x 0...5 V, 0...10 V, min. resistance 10 kΩ (Type 22DTC-13)
Current output power [Range]

1x 4...20 mA, max. resistance 500 Ω (22DC-13) 2x 4...20 mA, max. resistance 500 Ω (22DTC-13)
CO₂ measuring range

Factory setting: 0...2000 ppm With A-22G-A05: 0...5000 ppm
