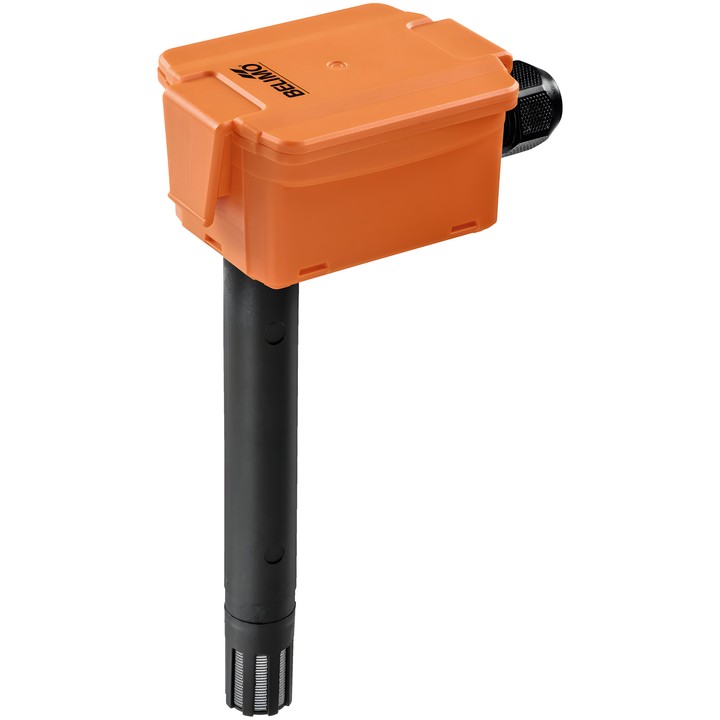

Belimo 22DTH-11MM - duct humidity and temperature sensor

Name: Belimo 22DTH-11MM - duct humidity and temperature sensor
Brand: Belimo
SKU: 22DTH-11MM
Price: 1226.00 PLN
Availability: BackOrder

Belimo

zł1,226.00

VAT included

zł996.75 tax excluded

Belimo 22DTH-11MM duct humidity and temperature sensor for measuring in air. AC/DC 24 V supply; the active 0...5 V or 0...10 V output is adjustable by jumper, and the passive temperature output is NTC10k Pre (10k3).

Probe length is 140 mm, diameter 19.5 mm. The housing has an IP65 / NEMA 4X protection rating.

Delivery in approx. 14 days

Belimo 22DTH-11MM – duct sensor

Sensor designed to measure air humidity and temperature in heating, ventilation and air-conditioning system ducts. At the active output, enthalpy or dew point can be selected instead of the humidity signal; temperature can be transmitted as a passive signal.

Key features

Nominal voltage: AC/DC 24 V.
Active output: 1 x 0...5 V, 0...10 V; min. resistance 10 kΩ. 0...5/10 V signal adjustable by jumper.
Passive temperature output: NTC10k Pre (10k3).
Relative humidity measuring range: 0...100% RH; accuracy ±2% between 0...80% RH @ 25°C.
Probe length: 140 mm; probe diameter: 19.5 mm.
Electrical connection: plug-in spring terminal block, max. 2.5 mm².
Protection rating: IP65 / NEMA 4X.
