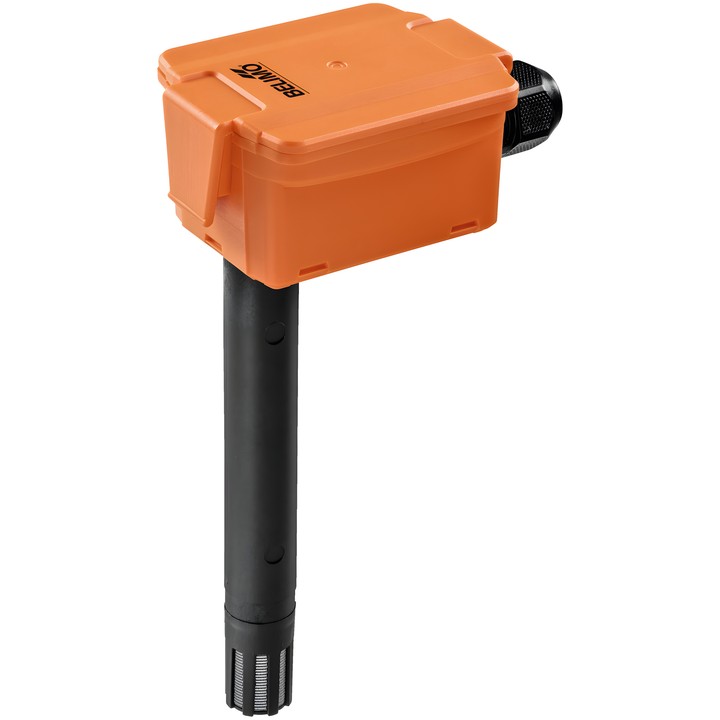

Belimo 22DTH-11MN duct air humidity and temperature sensor, powered by AC/DC 24 V. It provides an active output of 0...5 V or 0...10 V and a passive NTC10k Carel temperature output.

The probe is 140 mm long and 19.5 mm in diameter. The housing has an IP65 / NEMA 4X protection rating.

Delivery in approx. 14 days
Share

Belimo 22DTH-11MN – duct sensor

Sensor designed to measure air humidity and temperature in a duct. The output signal can be selected as relative or absolute humidity, enthalpy or dew point. Temperature can be output as a passive NTC10k Carel signal.

Key features

  • Nominal voltage: AC/DC 24 V.
  • Voltage output: 1 x 0...5 V, 0...10 V, min. resistance 10 kΩ; 0...5/10 V selection using a jumper.
  • Passive temperature output: NTC10k Carel.
  • Relative humidity measuring range: 0...100% RH.
  • Temperature measuring range for passive sensor: -35...70°C [-30...160°F].
  • Probe 140 mm long and 19.5 mm in diameter.
  • Housing protection rating: IP65 / NEMA 4X.
  • Electrical connection: pluggable terminal strip with spring terminals, max. 2.5 mm².

Supplied with a mounting flange for a 19.5 mm duct sensor, type A-22D-A35.

  • Brand
    Belimo
  • Reference
    22DTH-11MN
  • EAN13
    7630498101175

  • Electrical connection
    Terminals
  • Measured values
    Temperature Humidity
  • Output signal
    0...5 V 0...10 V NTC10k Carel
  • Passive temperature sensor output
    NTC10k Carel
  • Probe length
    140 mm
  • Humidity measuring range
    0...100% RH
  • AC/DC voltage
    AC/DC 24 V
  • Active sensor output note
    Output signal 0...5/10 V adjustable via jumper
  • Output voltage range [Range]
    1 x 0...5 V, 0...10 V, min. resistance 10 kΩ
