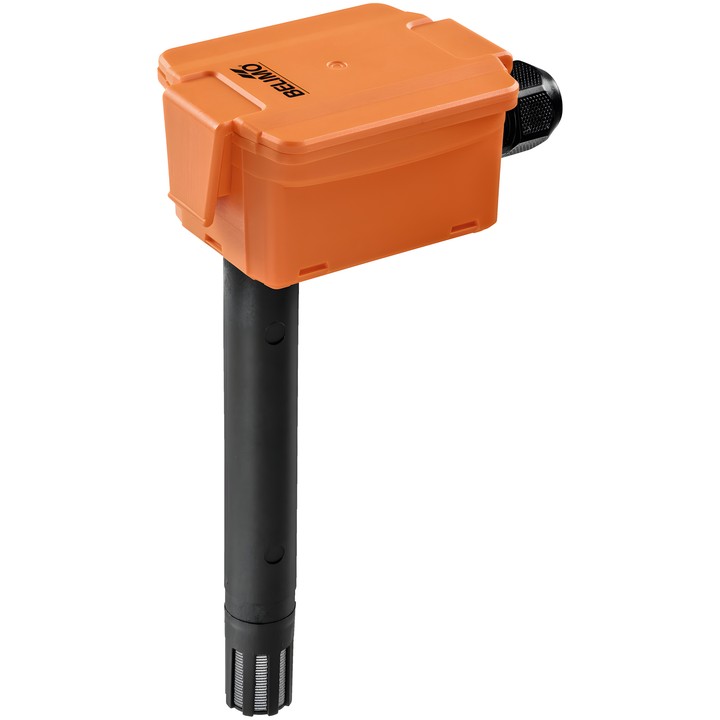

Belimo 22DTH-13M - duct humidity and temperature sensor

Belimo 22DTH-13M - duct humidity and temperature sensor

Belimo
zł715.06
VAT included
zł581.35 tax excluded

Active duct sensor for measuring air humidity and temperature in HVAC systems. DC 24 V power supply, two 4...20 mA outputs; probe length 140 mm, diameter 19.5 mm.

Delivery in approx. 14 days
Share

Belimo 22DTH-13M – duct humidity and temperature sensor

Active sensor for measuring air temperature and relative or absolute humidity in a duct. The humidity signal can be replaced with an enthalpy or dew point signal.

Key features

  • Nominal voltage: DC 24 V; voltage range: DC 13.5...26.4 V.
  • Current outputs: 2x 4...20 mA, max. resistance 500 Ω.
  • Relative humidity measuring range: 0...100% RH.
  • Temperature: 4 selectable measuring ranges.
  • Probe length 140 mm and diameter 19.5 mm.
  • Enclosure protection rating: IP65 / NEMA 4X.
  • Electrical connection: pluggable spring terminal block, max. 2.5 mm².

A plastic mounting flange for the 19.5 mm duct sensor, type A-22D-A35, is included.

  • Brand
    Belimo
  • Reference
    22DTH-13M
  • EAN13
    7630498101199

  • Electrical connection
    Terminals
  • Measured values
    Temperature Humidity
  • Output signal
    4...20 mA
  • Probe length
    140 mm
  • Humidity measuring range
    0...100% RH
  • AC/DC voltage
    DC 24 V
  • Current output power [Range]
    2x 4...20 mA, max. resistance 500 Ω

Techniczna karta katalogowa

Download (1.74MB)

Instrukcja montażu

Download (981.59KB)

Techniczna karta katalogowa – 22DTH-13..

Download (1.74MB)

EU Declaration of Conformity – 22DTH-13M

Download (39.84KB)

Environmental Declaration – 22DTH..

Download (70.37KB)
