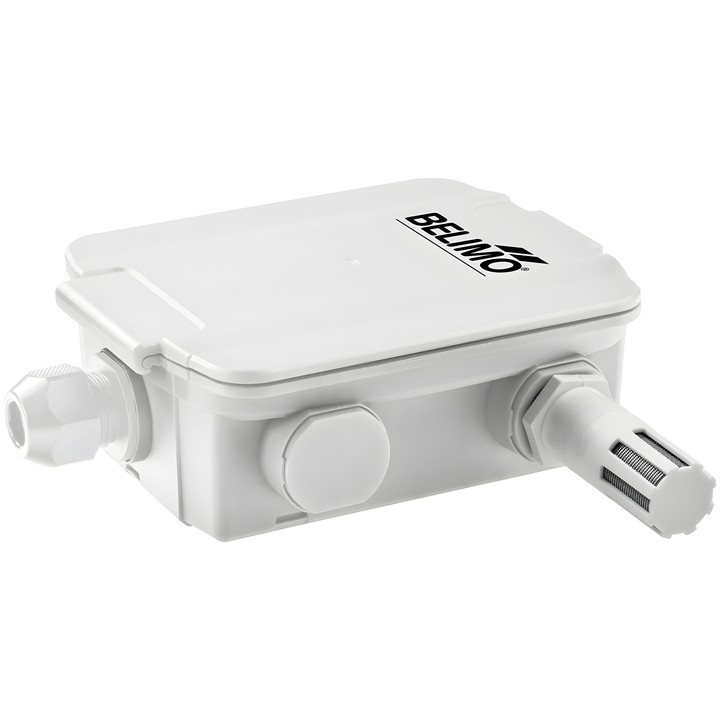

Belimo 22UTH-11 - outdoor humidity and temperature sensor

Belimo 22UTH-11 – outdoor sensor

Active sensor for measuring outdoor air temperature and humidity, fitted with a weather protection shield. Enthalpy or dew point can be selected instead of the humidity signal at the output.

Key features

• Nominal voltage: AC/DC 24 V.
• Two voltage outputs: 2 x 0...5 V, 0...10 V; minimum load resistance 10 kΩ. The 0...5/10 V signal is set using a jumper.
• Relative humidity measuring range: 0...100% RH, non-condensing.
• Four selectable temperature ranges: S0 -40...60°C, S1 0...50°C, S2 -15...35°C, S3 -20...80°C. The maximum measuring range does not define the permissible medium temperature; medium temperature is -35...50°C.
• Temperature accuracy: ±0.3°C @ 25°C; humidity accuracy: ±2% between 0...80% RH @ 25°C.
• Enclosure protection rating: IP65 / NEMA 4X.
• Connection: plug-in terminal block with spring terminals, max. 2.5 mm².
• Included: A-22D-A10 mounting plate, A-22U-A01 rain shield, dowels and screws.
