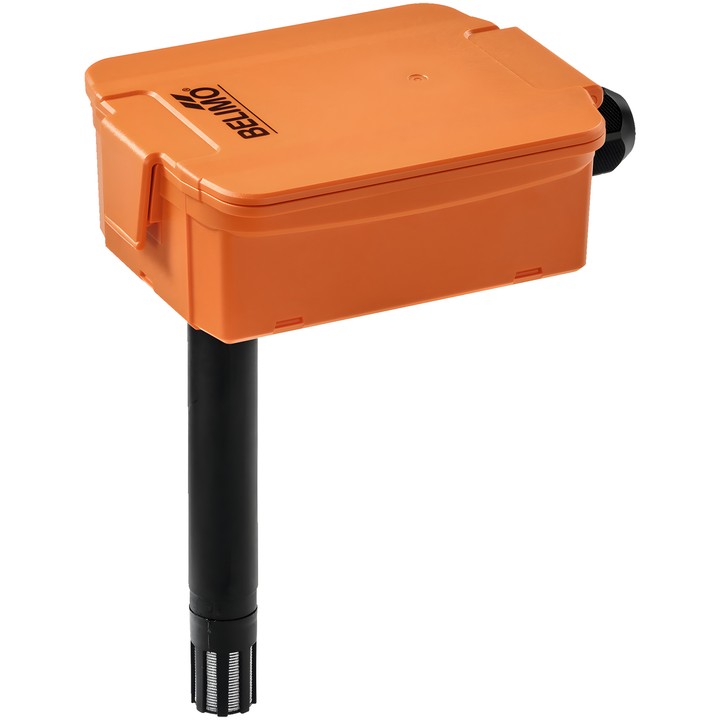

Belimo 22DTH-15Q - duct humidity and temperature sensor

Belimo 22DTH-15Q - duct humidity and temperature sensor

Belimo
zł1,360.69
VAT included
zł1,106.25 tax excluded

Duct humidity and air temperature sensor with Modbus RTU communication and 0...5 V, 0...10 V outputs. AC/DC 24 V supply, probe length 270 mm.

Delivery in approx. 14 days
Share

Belimo 22DTH-15Q – duct sensor

Active sensor for measuring humidity and air temperature in a duct. Enthalpy or dew point can be selected as the output signal instead of the humidity signal.

Key features

  • Communication: Modbus RTU.
  • Nominal supply: AC/DC 24 V.
  • Voltage outputs: 2 x 0...5 V, 0...10 V; minimum resistance 10 kΩ. The 0...5/10 V signal is adjustable via jumper.
  • Relative humidity measuring range: adjustable via Modbus; factory setting 0...100% RH.
  • Temperature measuring range: adjustable via Modbus; factory setting -20...80°C [-5...175°F].
  • Probe length: 270 mm; probe diameter: 19.5 mm.
  • Enclosure protection rating: IP65 / NEMA 4X.
  • Electrical connection: pluggable spring-cage terminal block, max. 2.5 mm².

  • Brand
    Belimo
  • Reference
    22DTH-15Q
  • EAN13
    7630498117916

  • Electrical connection
    Terminals
  • Measured values
    Temperature Humidity
  • Output signal
    Modbus 0...5 V 0...10 V
  • Probe length
    270 mm
  • Humidity measuring range
    Adjustable via Modbus Factory setting: 0...100% RH
  • AC/DC voltage
    AC/DC 24 V
  • Temperature measuring range
    Adjustable via Modbus -20...80°C [-5...175°F]
  • Active sensor output note
    Output signal 0...5/10 V adjustable via jumper
  • Output voltage range [Range]
    2 x 0...5 V, 0...10 V, min. resistance 10 kΩ
  • Communication
    Modbus RTU

Techniczna karta katalogowa

Download (3.1MB)

Instrukcja montażu

Download (1.26MB)

Techniczna karta katalogowa – 22DTH-15..

Download (3.1MB)

EU Declaration of Conformity – 22DTH-15Q

Download (38.66KB)

Environmental Declaration – 22DTH..

Download (70.37KB)
