Belimo 22UTH-110M - outdoor humidity and temperature sensor

Name: Belimo 22UTH-110M - outdoor humidity and temperature sensor
Brand: Belimo
SKU: 22UTH-110M
Price: 1954.47 PLN
Availability: OutOfStock

Belimo

zł1,954.47

VAT included

zł1,589.00 tax excluded

Outdoor air humidity and temperature sensor with weather shield. AC/DC 24 V supply; active output 0...5 V or 0...10 V and passive temperature output NTC10k Pre (10k3).

An enthalpy or dew point signal can be selected instead of the humidity signal. Enclosure protection rating IP65 / NEMA 4X.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

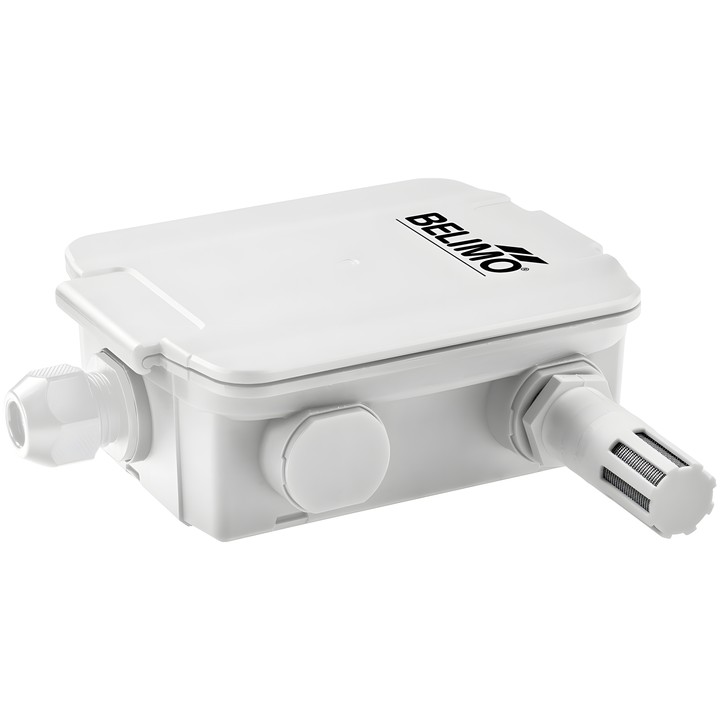

Belimo 22UTH-110M outdoor sensor

This sensor with weather shield is designed to measure outdoor air humidity and temperature. An enthalpy or dew point signal can be selected at the output instead of the humidity signal.

Key features and specifications

Nominal voltage: AC/DC 24 V; voltage range: AC 21.6...26.4 V / DC 13.5...26.4 V.
Active output: 1 x 0...5 V, 0...10 V, min. resistance 10 kΩ; 0...5/10 V signal adjustable via jumper.
Passive temperature output: NTC10k Pre (10k3).
Relative humidity measuring range: 0...100% RH, non-condensing; accuracy: ±2% between 0...80% RH @ 25°C.
Temperature measuring range for passive sensor: -35...50°C [-30...120°F]; accuracy: ±0.2°C @ 25°C [±0.35°F @ 77°F].
Absolute humidity range configurable on the transmitter: 0...50 g/m³ (default setting) or 0...80 g/m³; enthalpy range: 0...85 kJ/kg.
Dew point range configurable on the transmitter: 0...50°C [40...140°F] (default setting) or -20...80°C [0...200°F].
Electrical connection: plug-in spring terminal block, max. 2.5 mm²; cable gland with strain relief ø6...8 mm.
Protection rating: IP65 / NEMA 4X.
