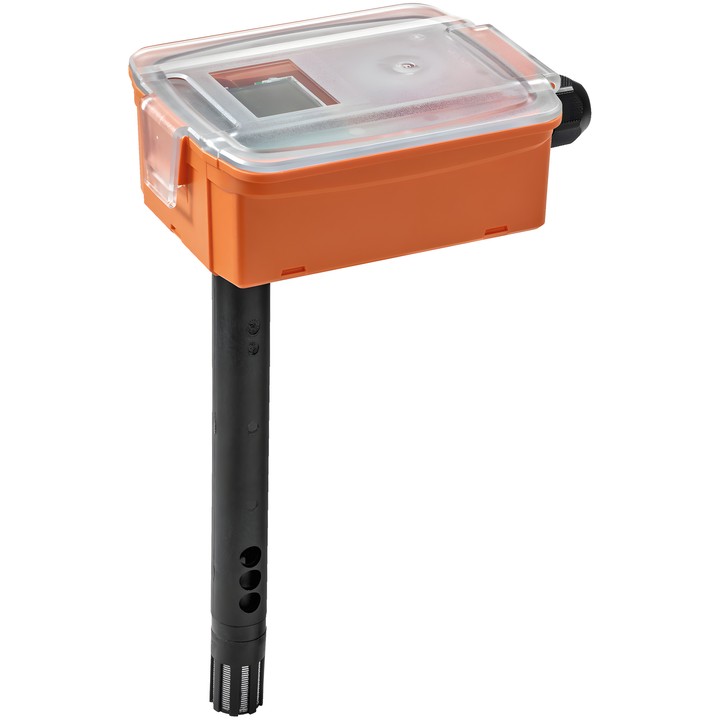

Belimo 22DTM-1106 - duct CO₂, humidity and temperature sensor

Name: Belimo 22DTM-1106 - duct CO₂, humidity and temperature sensor
Brand: Belimo
SKU: 22DTM-1106
Price: 1861.64 PLN
Availability: BackOrder

Belimo

zł1,861.64

VAT included

zł1,513.53 tax excluded

Active duct sensor for measuring CO₂, humidity and air temperature. Model 22DTM-1106 has an LCD, a 180 mm probe and is powered by AC/DC 24 V.

0...5 V or 0...10 V output signals are available for CO₂, humidity and temperature. The housing has an IP65 / NEMA 4X protection rating.

Delivery in approx. 14 days

Belimo 22DTM-1106 – duct sensor

Active sensor designed to measure CO₂, humidity and air temperature in a duct. Version 22DTM-1106 is equipped with an LCD.

Key features and specifications

Measured variables: CO₂, relative humidity and temperature.
CO₂ measurement technology: dual-channel, NDIR.
CO₂ measuring range: factory setting 0...2000 ppm; with A-22G-A05: 0...5000 ppm.
Humidity measuring range: 0...100% RH; temperature: 0...50°C [32...122°F].
Output signals for CO₂, humidity and temperature: 0...5 V, 0...10 V; 3 x voltage output, min. resistance 10 kΩ. The 0...5/10 V signal is adjusted using a jumper.
Rated voltage: AC/DC 24 V.
Display: backlit LCD.
Probe length: 180 mm; probe diameter: 19.5 mm.
Housing protection rating: IP65 / NEMA 4X.
Electrical connection: removable spring terminal block, max. 2.5 mm².

A-22D-A35 plastic mounting flange is included. Configuration via the Belimo Duct Sensor Assistant App requires the A-22G-A05 Bluetooth module; the module and app are not required for standard operation and configuration.
