Belimo 22WDP-132 - liquid differential pressure sensor

Belimo 22WDP-132 - liquid differential pressure sensor

Belimo
zł2,324.70
VAT included
zł1,890.00 tax excluded

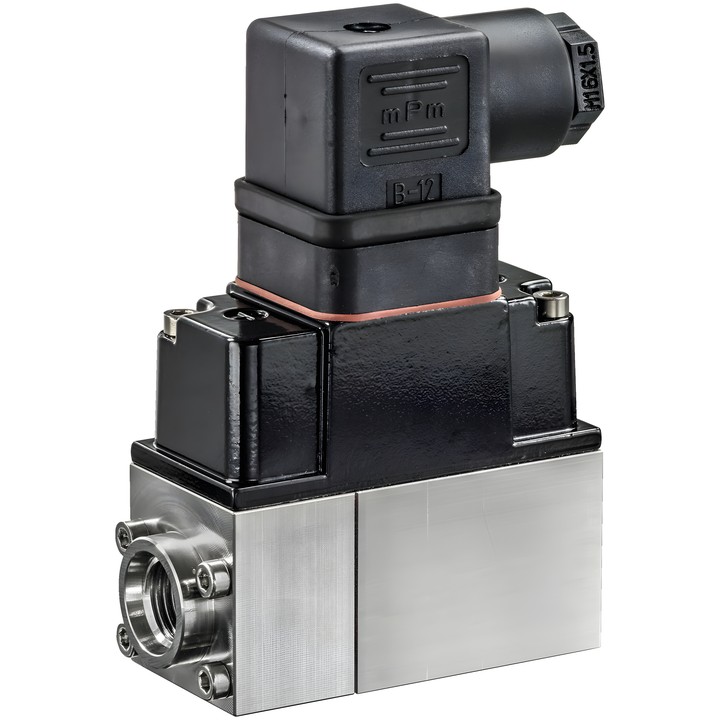

Active Belimo 22WDP-132 differential pressure sensor with a measuring range of 0...2.5 bar (0...36 psi). DC 24 V supply, 4...20 mA output signal. Protection rating IP65 / NEMA 4.

Delivery in approx. 14 days
Share

Belimo 22WDP-132 differential pressure sensor

Active sensor for measuring differential pressure in HVAC systems. According to the documentation, it is suitable for liquids, refrigerants and non-aggressive gases.

Key features

  • Differential pressure measuring range: 0...2.5 bar (0...36 psi).
  • Output signal: 1x 4...20 mA, max. resistance 900 Ω.
  • Nominal voltage: DC 24 V; nominal voltage range: DC 13.5...26.4 V.
  • Pressure connection: G 1/4".
  • Electrical connection: connector for 0.5...1.5 mm² cable.
  • Protection rating: IP65 / NEMA 4.
  • Positive differential pressure: 6 bar; negative differential pressure: -1 bar; burst pressure: 21 bar.
  • Accuracy: ±1% of measuring range at -5...75°C [23...167°F].

Permitted media specified in the functional data: water, water-glycol mixture and steam. At a medium temperature <2°C [<36°F], protection against freezing must be provided.

  • Brand
    Belimo
  • Reference
    22WDP-132
  • EAN13
    7630498118067

  • Electrical connection
    Connection plug
  • Measured values
    Differential pressure
  • Output signal
    4...20 mA
  • Pressure measuring range
    0...2.5 bar | 0...36 psi
  • AC/DC voltage
    DC 24 V
  • Current output power [Range]
    1x 4...20 mA, max. resistance 900 Ω

Techniczna karta katalogowa

Download (2MB)

Instrukcja montażu

Download (897.81KB)

Techniczna karta katalogowa – 22WDP-13..

Download (2MB)

EU Declaration of Conformity – 22WDP-132

Download (40.03KB)

Environmental Declaration – 22WDP..

Download (70.18KB)
