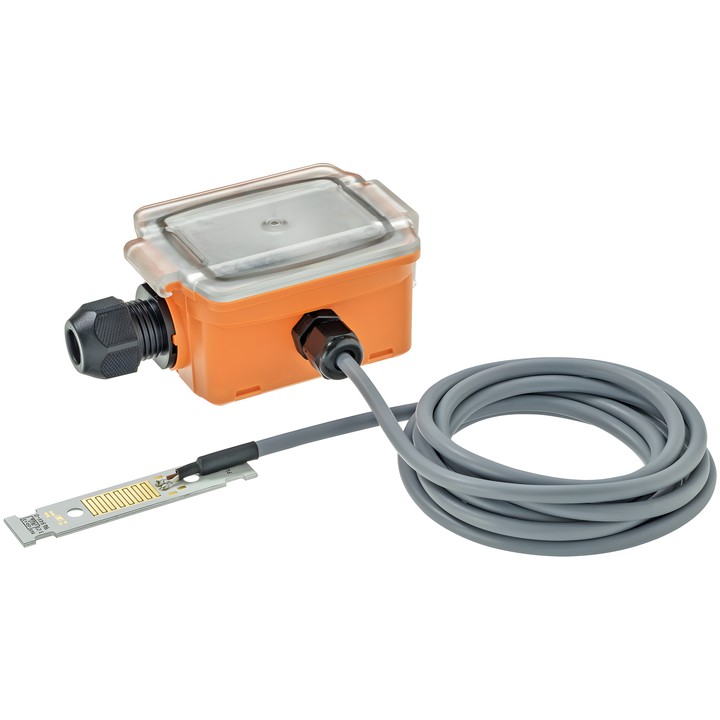

Belimo 22HH-100X - condensation sensor with switch

Belimo 22HH-100X - condensation sensor with switch

Belimo
zł502.23
VAT included
zł408.32 tax excluded

The Belimo 22HH-100X condensation sensor detects condensation on cooled surfaces. It has an external sensor with a 2 m cable, a changeover contact and LEDs indicating power and condensation.

Power supply: AC/DC 24 V. Enclosure protection rating: IP65 / NEMA 4X.

Delivery in approx. 14 days
Share

Belimo 22HH-100X – condensation sensor

The device detects condensation on cooled surfaces, such as chilled beams. The relay contact can be connected to a controller or indication system, or wired in series with a cooling valve to interrupt the flow of cold water when condensation starts.

Key features

  • External sensor with a 2 m cable.
  • SPDT changeover contact, potential-free; max. AC/DC 24 V / 1 A.
  • Nominal voltage AC/DC 24 V; range: AC 21.6...26.4 V / DC 13.5...26.4 V.
  • LEDs: green – power supply OK; red – condensation.
  • Adjustable sensor sensitivity.
  • Connector with spring-loaded plug-in terminals, max. 2.5 mm².
  • Protection rating IP65 / NEMA 4X.

Included: A-22D-A09 mounting plate, A-22P-A44 thermal contact fluid, screws, wall plugs and cable tie.

  • Brand
    Belimo
  • Reference
    22HH-100X
  • EAN13
    7630498101250

  • Electrical connection
    Terminals
  • Measured values
    Condensation
  • Output signal
    Switch
  • AC/DC voltage
    AC/DC 24 V
  • Display type
    LED

Techniczna karta katalogowa

Download (1.63MB)

Instrukcja montażu

Download (990.2KB)

Techniczna karta katalogowa – 22HH-100X

Download (1.64MB)

EU Declaration of Conformity – 22HH-100X

Download (39.99KB)

Environmental Declaration – 22HH..

Download (70.54KB)
