Belimo 22PE-1UD - DN 20 thermal energy meter

Belimo 22PE-1UD - DN 20 thermal energy meter

Belimo
zł3,302.16
VAT included
zł2,684.68 tax excluded

Thermal energy meter for measuring energy in a closed heating or cooling circuit. Model 22PE-1UD measures flow ultrasonically and temperature; it has automatic glycol content compensation.

DN 20, PN 25, qp 2.5 m³/h, G 1" male thread and AC/DC 24 V power supply. Supports BACnet/IP, BACnet MS/TP, Modbus TCP, Modbus RTU, MP-Bus and Cloud.

Delivery in approx. 14 days
Share

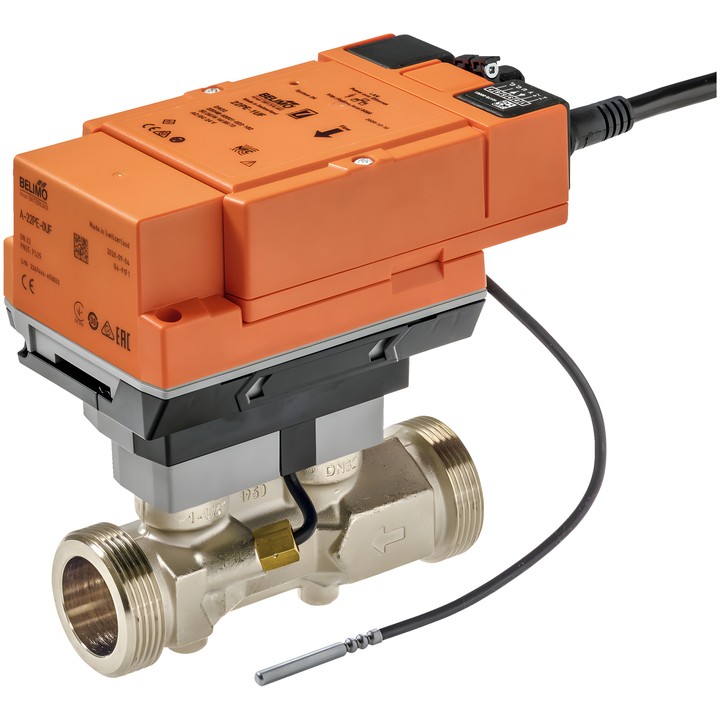

Belimo 22PE-1UD thermal energy meter

The device determines thermal energy from volumetric flow and the temperature difference between the supply and return in a closed heating or cooling circuit. One temperature sensor is integrated into the flow sensor, while the other is an external sensor.

Key features and specifications

  • Ultrasonic flow measurement; measured values: flow and temperature.
  • DN 20, PN 25, G 1" male-thread connection according to ISO 228-1.
  • Nominal flow qp 2.5 m³/h, maximum qs 5 m³/h and minimum qi 0.025 m³/h.
  • Medium: water or water with up to 60% vol. glycol; automatic glycol content compensation.
  • Nominal power supply AC/DC 24 V; power supply via PoE is possible.
  • Communication: BACnet/IP, BACnet MS/TP, Modbus TCP, Modbus RTU, MP-Bus and Cloud. M-Bus requires a G-22PEM-A01 converter.
  • Voltage output: 1 x 0...10 V, 0.5...10 V, 2...10 V.
  • Configuration via Belimo Assistant 2 or the integrated web server; NFC interface.
  • Includes an insulation cover for the DN 15...25 thermal energy meter; according to the documentation, it is not included in the Asia Pacific region.

The device can operate as a heat meter, cooling meter or combined heating and cooling meter. Installation on the supply or return is selected during commissioning; the manufacturer recommends installation on the return.

  • Brand
    Belimo
  • Reference
    22PE-1UD
  • EAN13
    7630498110306

  • Electrical connection
    Cable
  • Measured values
    Flow Temperature
  • Output signal
    BACnet Modbus MP-Bus 0...10 V
  • AC/DC voltage
    AC/DC 24 V
  • Output voltage range [Range]
    1 x 0...10 V, 0.5...10 V, 2...10 V
  • Communication
    BACnet/IP BACnet MS/TP Modbus TCP Modbus RTU MP-Bus Cloud
  • Flow qp
    2.5
  • Medium
    Water, water with max. 60% vol. glycol.
  • Valve size
    20 mm | 3/4 inch

Techniczna karta katalogowa

Download (5.69MB)

Instrukcja montażu

Download (1.37MB)

Techniczna karta katalogowa – 22PE-1U..

Download (5.12MB)

EU Declaration of Conformity – 22PE-1UD

Download (153.57KB)

Environmental Declaration – 22PE..

Download (71.71KB)
In business since 2005
Over 20 years of experience
A trusted partner
Reliable service and customer trust
Technical support
Help with selecting and operating equipment
