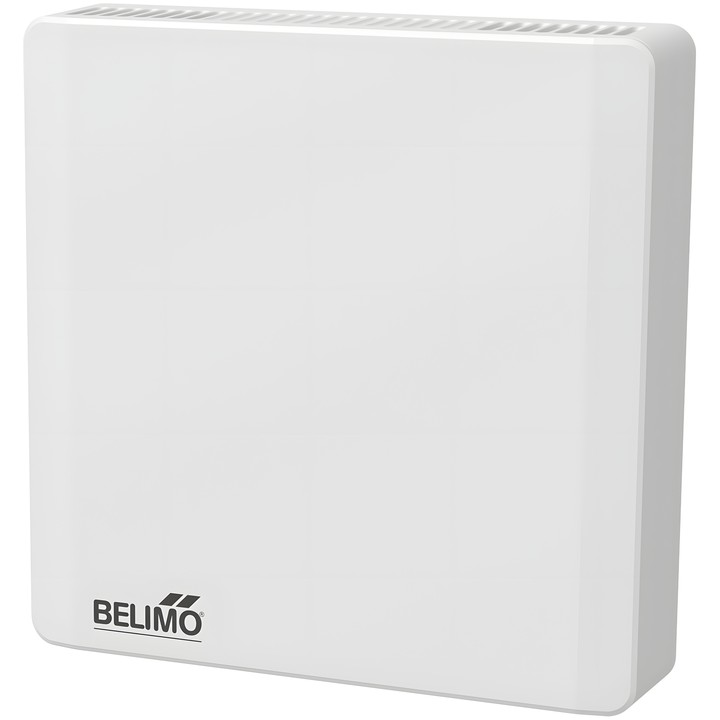

Belimo 22RT-18-1 - room temperature sensor

Name: Belimo 22RT-18-1 - room temperature sensor
Brand: Belimo
SKU: 22RT-18-1
Price: 259.67 PLN
Availability: BackOrder

Belimo

zł259.67

VAT included

zł211.11 tax excluded

Room temperature sensor with active measurement, MP-Bus communication and analog outputs. Supply voltage AC/DC 24 V; available output signals: 0...5 V, 0...10 V, 2...10 V and 4...20 mA.

The device supports NFC, configuration via Belimo Assistant 2, and reading values and changing settings via Belimo Display App.

Delivery in approx. 14 days

Belimo 22RT-18-1 – room temperature sensor

The 22RT-18-1 measures room temperature. It combines MP-Bus communication with analog outputs; the device is configured using Belimo Assistant 2. Belimo Display App enables room value readings and setting changes via NFC.

Key features and specifications

Measured value: temperature; measuring range: 0...50°C [32...122°F].
Temperature measurement accuracy: ±0.3°C @ 25°C [±0.5°F @ 77°F].
Nominal voltage: AC/DC 24 V.
Communication: MP-Bus.
3 analog outputs; signals selectable in Belimo Assistant 2: 0...10 V (factory setting), 0...5 V, 2...10 V or 4...20 mA.
NFC and Belimo Display App support.
Electrical connection: spring terminals 0.2...2.5 mm².
Degree of protection IEC/EN: IP30.
Housing: PC, white, RAL 9003.
