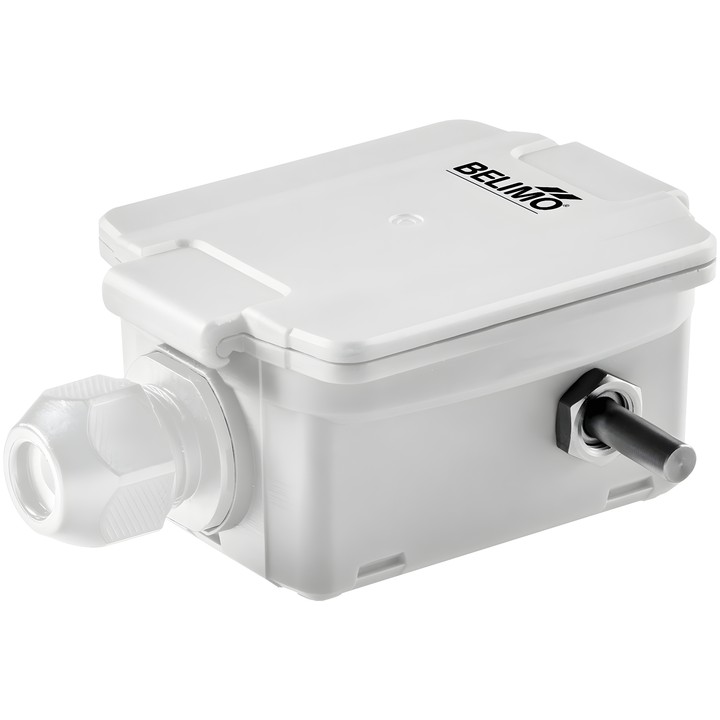

Belimo 22UT-12 - outdoor temperature sensor

Name: Belimo 22UT-12 - outdoor temperature sensor
Brand: Belimo
SKU: 22UT-12
Price: 342.00 PLN
Availability: BackOrder

Belimo

zł342.00

VAT included

zł278.05 tax excluded

Active air temperature sensor for outdoor areas, powered by AC/DC 24 V. The 0...5 V or 0...10 V output signal is adjusted using a jumper.

Eight selectable measuring ranges, a 25 mm long probe with a diameter of 6 mm, and an enclosure with IP65 / NEMA 4X protection rating.

Delivery in approx. 14 days

Belimo 22UT-12 – outdoor temperature sensor

Active sensor for measuring air temperature in outdoor areas. The documentation lists cold stores and greenhouses as typical applications.

Key features and specifications

Nominal supply voltage: AC/DC 24 V; voltage range: AC 21.6...26.4 V / DC 13.5...26.4 V.
Voltage output: 1 x 0...5 V, 0...10 V, min. resistance 5 kΩ; 0...5/10 V signal adjusted using a jumper.
8 selectable measuring ranges; sensing element based on Pt1000 class AA.
Temperature measurement accuracy: ±0.5°C @ 21°C [±0.9°F @ 70°F] with range settings S2 and S4.
Probe length: 25 mm; probe diameter: 6 mm.
Protection rating: IP65 / NEMA 4X.
Electrical connection: plug-in spring terminal block, max. 2.5 mm².
Ambient temperature: -35...50°C [-30...120°F].

Measuring ranges selected using jumper settings include S0–S7. The maximum listed measuring range does not define the permissible temperature of the sensor medium.
