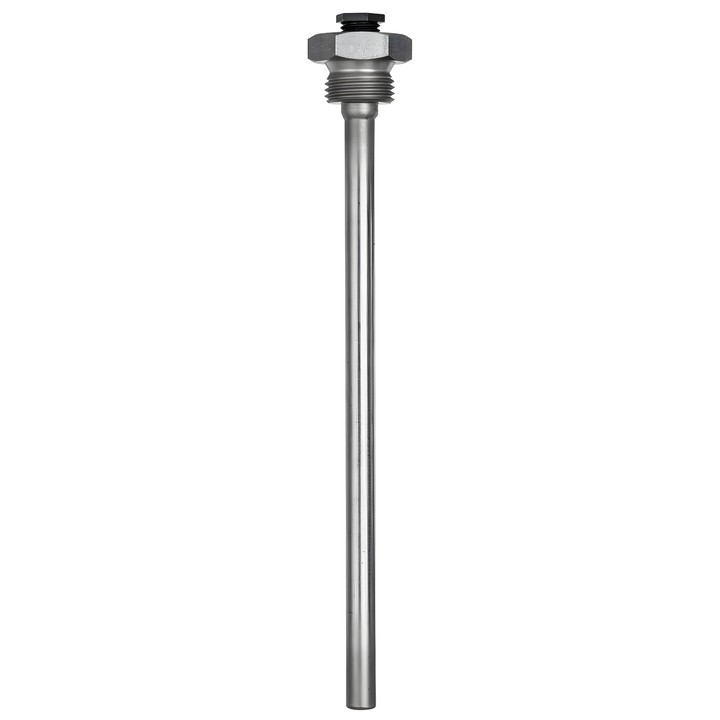

Belimo A-22P-A29 - immersion pocket for temperature sensor

Belimo A-22P-A29 - immersion pocket for temperature sensor

Belimo
zł131.73
VAT included
zł107.10 tax excluded

Stainless steel immersion pocket for installing immersion and cable temperature sensors 01DT.., 22DT.., 01CT.. and 22CT... Pocket length 250 mm, diameter 9 mm, G 1/2" external thread and integrated compression fitting.

Delivery in approx. 14 days
Share

Belimo A-22P-A29 – immersion pocket

Stainless steel pocket designed for installing immersion and cable temperature sensors 01DT.., 22DT.., 01CT.. and 22CT... It has a G 1/2" external thread and an integrated compression fitting.

Key data

  • Pocket length: 250 mm; diameter: 9 mm.
  • Spanner size: SW27.
  • Maximum flow velocity: 4.5 m/s.
  • Medium: water or water-glycol mixture.
  • PN: 40; medium temperature: up to max. 200°C.
  • Turned part material: V4A (1.4404); tubes: V4A (1.4571); clamping screw: Polyamide (PA66/GF25).
  • Weight: 0.11 kg.

  • Brand
    Belimo
  • Reference
    A-22P-A29
  • EAN13
    7630498118197

Techniczna karta katalogowa

Download (467.24KB)

Techniczna karta katalogowa – A-22P-A.. G VA

Download (470.67KB)
