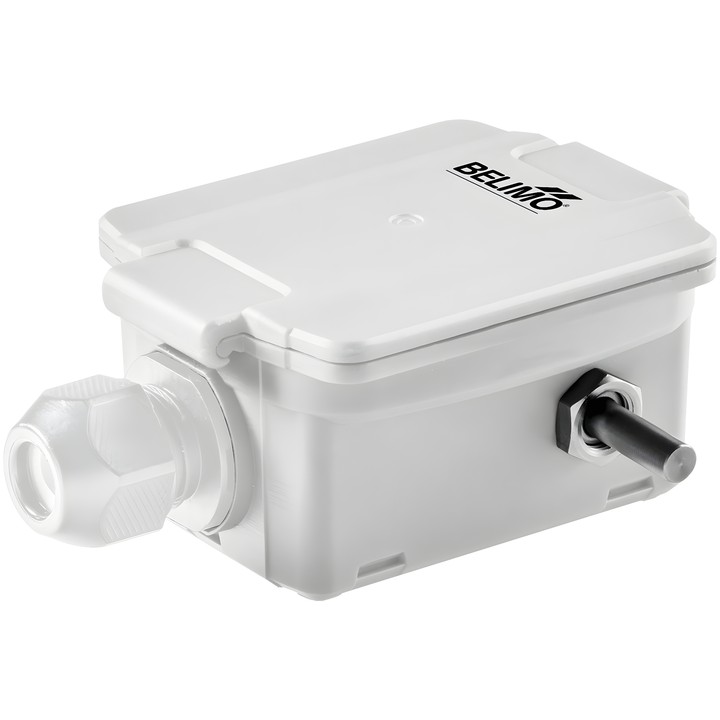

Belimo 22UT-14 - outdoor temperature sensor

Name: Belimo 22UT-14 - outdoor temperature sensor
Brand: Belimo
SKU: 22UT-14
Price: 342.00 PLN
Availability: BackOrder

Belimo

zł342.00

VAT included

zł278.05 tax excluded

Active air temperature sensor for outdoor applications, with a 4...20 mA output signal and DC 24 V power supply. Offers 8 selectable measuring ranges.

The probe is 25 mm long and 6 mm in diameter. The enclosure has an IP65 / NEMA 4X rating.

Delivery in approx. 14 days

Belimo 22UT-14 – outdoor temperature sensor

Active sensor for measuring outdoor air temperature. The 4...20 mA output signal corresponds to the selected measuring range.

Key features

Nominal supply voltage: DC 24 V; voltage range: DC 13.5...26.4 V.
Current output: 1x 4...20 mA, max. resistance 500 Ω.
8 measuring ranges selectable via jumper settings: S0 -50...50°C, S1 -10...120°C, S2 0...50°C, S3 0...250°C, S4 -15...35°C, S5 0...100°C, S6 -20...80°C, S7 0...160°C.
Measuring element based on Pt1000 class AA; accuracy ±0.5°C @ 21°C for settings S2 and S4.
Probe: length 25 mm, diameter 6 mm.
Enclosure rating: IP65 / NEMA 4X.
Connection: plug-in spring terminal block, max. 2.5 mm²; cable gland ø6...8 mm.
Ambient temperature: -35...50°C; medium temperature: -35...50°C.

The stated measuring ranges do not define the permissible medium temperature; its limit is -35...50°C.
