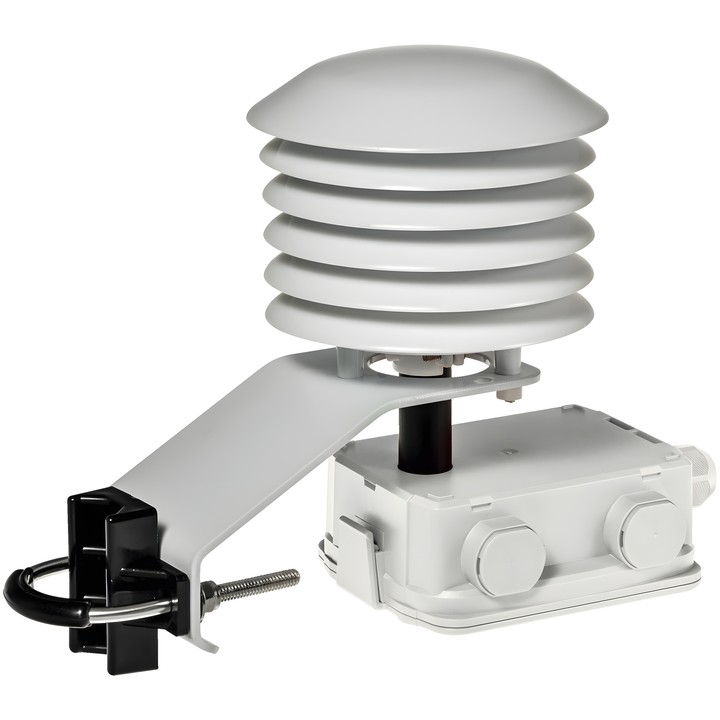

Belimo 22UTH-160X - outdoor humidity and temperature sensor

Belimo 22UTH-160X outdoor sensor

Active humidity and temperature sensor for outdoor applications. The shield protects the sensors from rain and radiant heat. The device supports BACnet MS/TP communication and voltage outputs.

Key features

• Measured values: relative humidity, absolute humidity, dew point, enthalpy and temperature.
• Nominal supply: AC/DC 24 V; voltage range: AC 19...29 V / DC 15...35 V.
• Communication: BACnet MS/TP.
• Voltage outputs: 2 x 0...5 V, 0...10 V; minimum resistance 10 kΩ. The 0...5/10 V signal is selectable by jumper.
• Temperature measuring range: adjustable via BACnet, factory setting -20...80°C [-5...175°F]; accuracy ±0.3°C @ 25°C [±0.5°F @ 77°F].
• Relative humidity measuring range: adjustable via BACnet, factory setting 0...100% RH; accuracy ±2% between 0...80% RH @ 25°C.
• Enclosure protection rating: IP65 / NEMA 4X.
• Electrical connection: removable terminal block with spring terminals, max. 2.5 mm².
