Belimo A-22P-A10 - stainless steel immersion pocket

Belimo A-22P-A10 - stainless steel immersion pocket

Belimo
zł117.18
VAT included
zł95.27 tax excluded

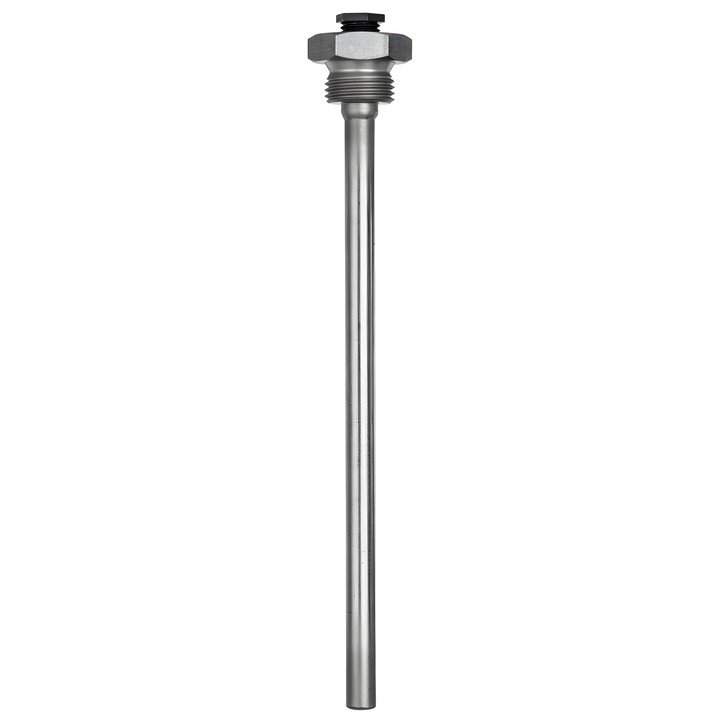

Belimo A-22P-A10 immersion pocket for temperature sensor installation. The pocket is 150 mm long and 9 mm in diameter; external thread G 1/2", SW27.

Equipped with an integrated clamping connection for immersion and cable sensors 01DT.., 22DT.., 01CT.. and 22CT...

Delivery in approx. 14 days
Share

Belimo A-22P-A10 – immersion pocket

Stainless steel pocket with external thread G 1/2" and an integrated clamping connection, designed for installing immersion and cable temperature sensors 01DT.., 22DT.., 01CT.. and 22CT...

Key technical data

  • Pocket length: 150 mm; pocket diameter: 9 mm; SW27.
  • Maximum flow velocity: 8.7 m/s.
  • Medium: water or a water-glycol mixture.
  • PN: 40; medium temperature: up to max. 200°C.
  • Material: machined part V4A (1.4404), tube V4A (1.4571), clamping screw Polyamide (PA66/GF25).

  • Brand
    Belimo
  • Reference
    A-22P-A10
  • EAN13
    7630498101694

Techniczna karta katalogowa

Download (467.24KB)

Techniczna karta katalogowa – A-22P-A.. G VA

Download (470.67KB)
