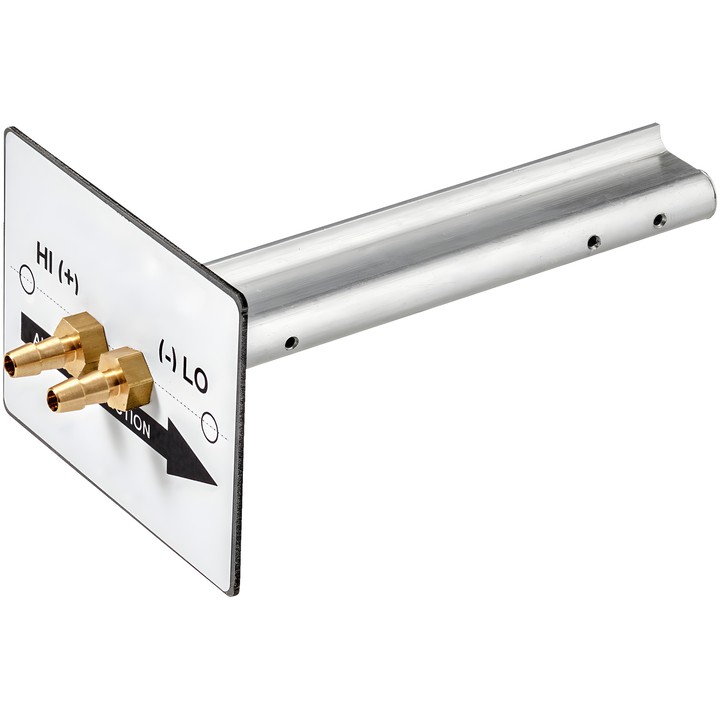

Belimo EXT-AC-R200 - air volume flow measuring probe

Belimo EXT-AC-R200 - air volume flow measuring probe

Belimo
zł480.93
VAT included
zł391.00 tax excluded

Probe for measuring air volume flow in round ducts, designed for use with the 22ADP-... differential pressure sensor. Probe length: 200 mm. Measurement is possible at air speeds from 2 to 25 m/s.

Product unavailable
Share

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo EXT-AC-R200

Probe for measuring air volume flow in a round duct. It is used for measurement together with the 22ADP-... differential pressure sensor.

Key features

  • Probe length: 200 mm.
  • Air speed range for measurement: from 2 to 25 m/s.
  • Medium: air.
  • Medium temperature: 5...95°C [41...203°F].
  • Probe material: aluminium.
  • Value B according to the type table: 15 mm.
  • Weight according to the type table: 0.13 kg.

During commissioning, configure the 22ADP-.. differential pressure sensor appropriately to obtain a correct air volume flow measurement. The installation instructions specify the probe's k-factor.

  • Brand
    Belimo
  • Reference
    EXT-AC-R200
  • EAN13
    7630498119989

  • Probe length
    200 mm

Techniczna karta katalogowa

Download (827.77KB)

Instrukcja montażu

Download (621.51KB)

Techniczna karta katalogowa – EXT-AC-..

Download (832.18KB)
