Belimo A-22P-A16 - stainless steel temperature sensor pocket

Name: Belimo A-22P-A16 - stainless steel temperature sensor pocket
Brand: Belimo
SKU: A-22P-A16
Price: 146.92 PLN
Availability: BackOrder

Belimo

zł146.92

VAT included

zł119.45 tax excluded

The stainless steel pocket for mounting a Belimo A-22P-A16 temperature sensor is 450 mm long, has a diameter of 9 mm and a G 1/2" male thread. It is equipped with an integrated compression fitting and a SW27 feature.

Delivery in approx. 14 days

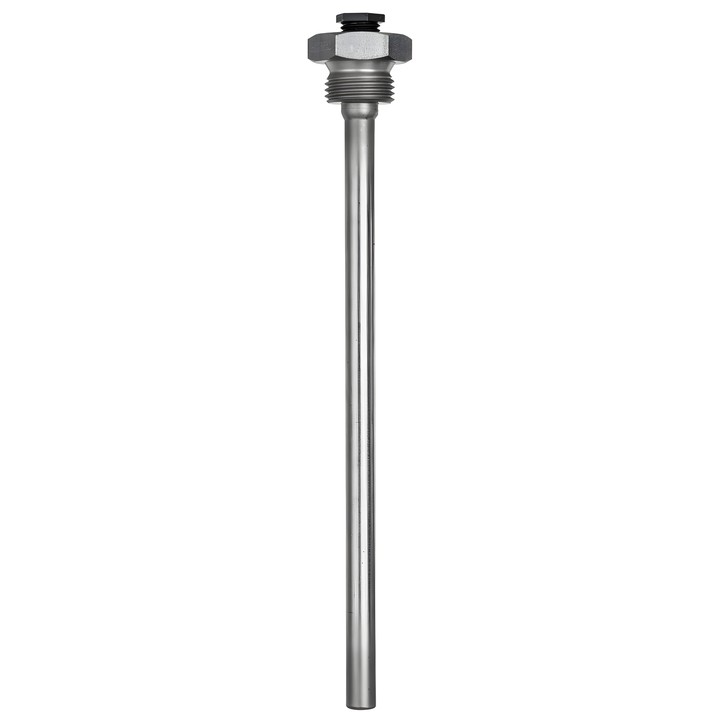

Belimo A-22P-A16 temperature sensor pocket

Pocket for mounting immersion and duct temperature sensors in the 01DT.., 22DT.., 01CT.. and 22CT.. series. Equipped with a G 1/2" male thread and an integrated compression fitting.

Key features and technical data

Pocket length: 450 mm; pocket diameter: 9 mm; SW27.
Maximum flow velocity: 1.0 m/s.
Media: water and water-glycol mixture; PN 40.
Medium temperature: up to max. 200°C.
Material of turned part: V4A (1.4404); tubes: V4A (1.4571); pressure screw: polyamide (PA66/GF25).
Weight: 0.14 kg.
