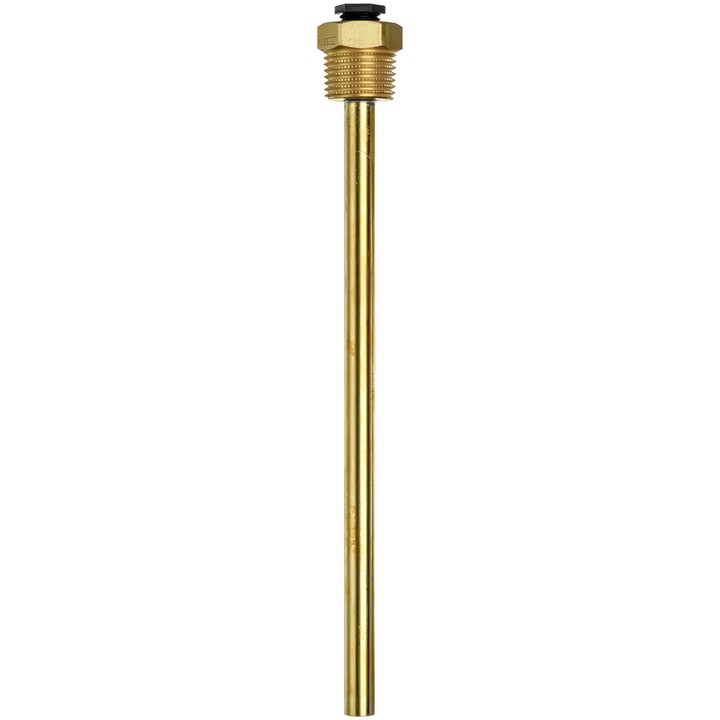

Belimo A-22P-A18 - brass immersion sleeve

Belimo A-22P-A18 - brass immersion sleeve

Belimo
zł60.64
VAT included
zł49.30 tax excluded

Brass immersion sleeve for installing temperature sensors. Model A-22P-A18 is 50 mm long, has a diameter of 9 mm, an R 1/2" male thread and SW22.

Delivery in approx. 14 days
Share

Belimo A-22P-A18 – immersion sleeve

Brass sleeve with an R 1/2" male thread and integrated compression fitting, designed for immersion and cable sensors from the 01DT.., 22DT.., 01CT.. and 22CT... series.

Key data

  • Sleeve length: 50 mm; sleeve diameter: 9 mm; SW22.
  • Maximum flow velocity: 26.6 m/s.
  • Medium: water or a water-glycol mixture.
  • PN: 16; medium temperature: up to max. 130°C.
  • Sleeve materials: turned part CW614N (2.0401), tube CW508L (2.0321), pressure screw Polyamide (PA66/GF25).
  • Weight: 0.058 kg.

  • Brand
    Belimo
  • Reference
    A-22P-A18
  • EAN13
    7630498101731

Techniczna karta katalogowa

Download (557.09KB)

Techniczna karta katalogowa – A-22P-A.. R MS

Download (544.32KB)
