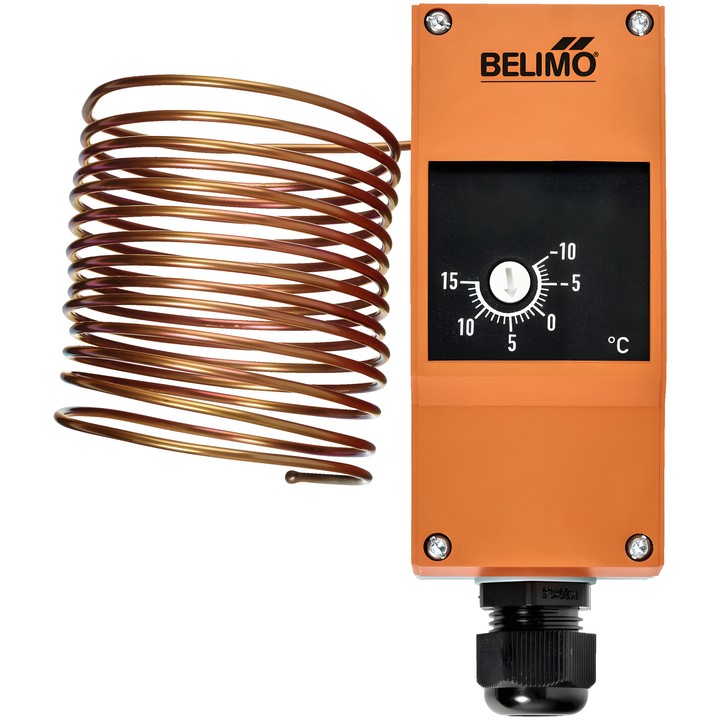

Belimo 01ATS-105XC - frost protection thermostat with 6 m capillary

Belimo 01ATS-105XC – frost monitoring

The thermostat is designed to monitor the temperature of water and air heaters in stationary ventilation and air conditioning systems. A frost alarm is signalled by a single-pole changeover contact (SPDT). If the temperature falls below the setpoint, the device locks out and requires manual reset; it can be reset manually once the temperature rises.

Key features and specifications

• Capillary: 6 m; capillary material: copper.
• Measuring range and setting range: -10...15°C; default setting: 5°C.
• Switching differential: 1.5 K (±1 K tolerance); setting accuracy: ±2 K.
• Output: changeover contact (SPDT), manual reset.
• Contact rating: AC 230 V 16 (2.5) A for position 1-2; AC 230 V 2 (0.4) A for position 1-4; DC 230 V 0.25 A.
• Electrical connection: spring terminal max. 2.5 mm²; M20x1.5 mm cable gland for cable ø6...12 mm.
• Degree of protection IEC/EN: IP65.
• Included: mounting kit with 6 brackets, type A-22D-A08.

If the temperature falls below the setpoint along a 300 mm section of the capillary, circuit 1-2 opens and circuit 1-4 closes. The ambient temperature at the housing must exceed the set switching point by more than 2 K to ensure reliable switching.
