Belimo A-22P-A61 - immersion sleeve set

Belimo A-22P-A61 - immersion sleeve set

Belimo
zł71.46
VAT included
zł58.10 tax excluded

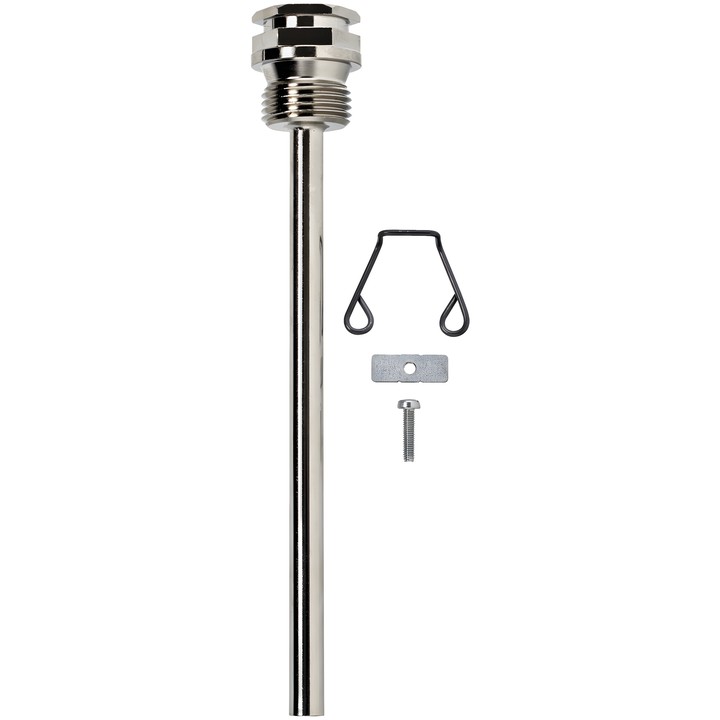

Immersion sleeve set made of nickel-plated brass, with a G 1/2" connection and sensor fixing material. The sleeve is 100 mm long and has a diameter of 8 mm.

Delivery in approx. 14 days
Share

Belimo A-22P-A61 – immersion sleeve set

Immersion sleeve made of nickel-plated brass, designed for the 01HT-1..C safety temperature limiter and the 01HT-1..A temperature monitor. The set includes sensor fixing material.

Key features

  • Sleeve length: 100 mm; diameter: 8 mm.
  • Connection: G 1/2"; spanner size: SW22.
  • Medium: water; liquid temperature: up to max. 130°C.
  • Maximum flow velocity: 7.2 m/s.
  • Sleeve material: turned part CW614N (2.0401), tube CW508L (2.0321).
  • Weight: 0.084 kg.

  • Brand
    Belimo
  • Reference
    A-22P-A61
  • EAN13
    7630498101830

Techniczna karta katalogowa

Download (669.82KB)
