Belimo A-22P-A62 - measuring pocket set

Belimo A-22P-A62 - measuring pocket set

Belimo
zł76.88
VAT included
zł62.50 tax excluded

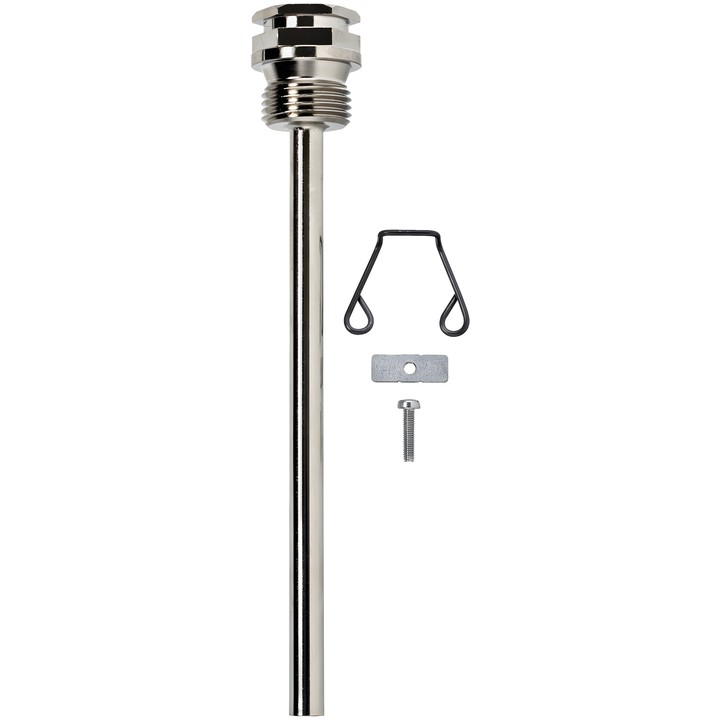

Nickel-plated brass measuring pocket set for mounting a temperature sensor. The pocket is 150 mm long, has a diameter of 8 mm and a G 1/2" connection; the set includes material for securing the probe.

Delivery in approx. 14 days
Share

Belimo A-22P-A62 – measuring pocket set

Nickel-plated brass pocket designed for mounting a temperature sensor. The set includes material for securing the probe for the 01HT-1..C safety temperature limiter and the 01HT-1..A temperature monitoring sensor.

Key data

  • Pocket length: 150 mm; diameter: 8 mm.
  • Connection: G 1/2"; spanner size: SW22.
  • Maximum flow velocity: 4.8 m/s.
  • Medium: water; medium temperature: up to max. 130°C.
  • Pocket material: turned part CW614N (2.0401), tube CW508L (2.0321).
  • CE marking; quality standard ISO 9001.

  • Brand
    Belimo
  • Reference
    A-22P-A62
  • EAN13
    7630498101847

Techniczna karta katalogowa

Download (669.82KB)
