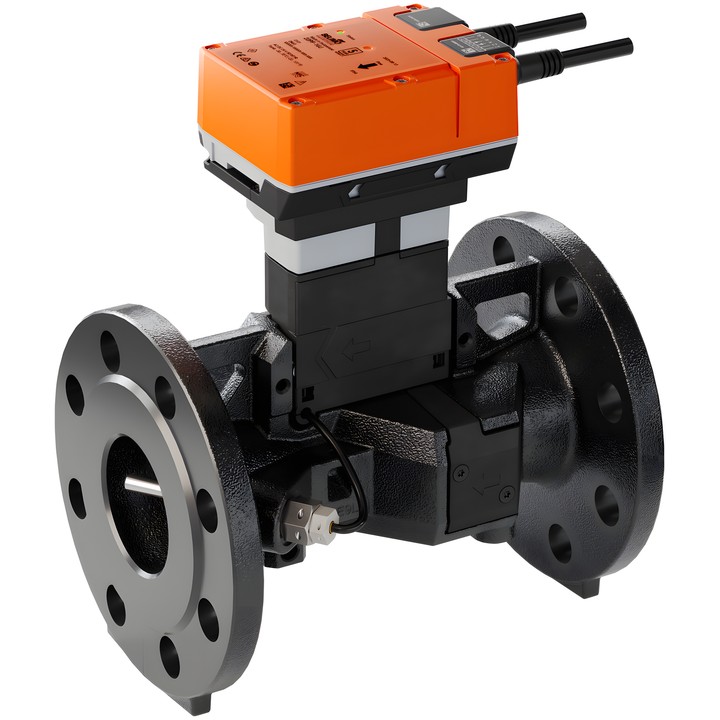

Belimo 22PF-1UJ - ultrasonic flow sensor

Belimo 22PF-1UJ - ultrasonic flow sensor

Belimo
zł7,410.75
VAT included
zł6,025.00 tax excluded

Ultrasonic flow sensor for water installations, designed to measure the flow and temperature of water or water-glycol mixtures up to 60% by volume. DN 65 model, PN 25, with an FS value of 10.6 l/s, flanged connection and AC/DC 24 V supply.

Supports BACnet MS/TP, Modbus RTU and MP-Bus, as well as a configurable analogue output. Configuration via NFC using Belimo Assistant 2.

Product unavailable
Share

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo 22PF-1UJ – flow sensor

The sensor uses ultrasonic flow measurement. It measures flow and temperature; during operation, it monitors the glycol content in the medium and compensates for its effect on measurement. It can also totalise flow.

Key features

  • DN 65 (2 1/2 inch), PN 25; FS 10.6 l/s (38 m³/h).
  • Medium: water or water with up to 60% by volume glycol.
  • Supply: AC/DC 24 V; electrical connection: cable, 6x 0.75 mm².
  • Communication: BACnet MS/TP, Modbus RTU, MP-Bus.
  • Voltage output: 1 x 0...10 V, 0.5...10 V, 2...10 V or user-defined; factory setting DC 0...10 V, selectable via NFC, min. resistance 10 kΩ.
  • Configuration via NFC using Belimo Assistant 2.
  • Flanged connection in accordance with EN 1092-2; insulation cover included.
  • IP54 protection rating; medium temperature for DN 65: -20...120°C.

For the specified measurement accuracy, an inlet section at least 5x DN long is required. Permitted mounting position: from vertical to horizontal; suspended mounting is not permitted.

  • Brand
    Belimo
  • Reference
    22PF-1UJ
  • EAN13
    7630498136986

  • Electrical connection
    Cable
  • Measured values
    Flow Temperature
  • Output signal
    BACnet Modbus MP-Bus 0...10 V
  • AC/DC voltage
    AC/DC 24 V
  • Active sensor output note
    DC 0...10 V (factory setting), selectable via NFC, min. resistance 10 kΩ
  • Output voltage range [Range]
    1 x 0...10 V, 0.5...10 V, 2...10 V or user-defined
  • Communication
    BACnet MS/TP Modbus RTU MP-Bus
  • Medium
    Water, water with max. 60% vol. glycol.
  • Valve size
    65 mm | 2 1/2 inch
  • Range value
    10.6 l/s

Techniczna karta katalogowa

Download (3.83MB)

Techniczna karta katalogowa – 22PF-1..

Download (3.84MB)
