Belimo A-22P-A63 - immersion sleeve kit for temperature sensor

Name: Belimo A-22P-A63 - immersion sleeve kit for temperature sensor
Brand: Belimo
SKU: A-22P-A63
Price: 86.22 PLN
Availability: BackOrder

Belimo

zł86.22

VAT included

zł70.10 tax excluded

Nickel-plated brass immersion sleeve kit for mounting a temperature sensor. The sleeve is 200 mm long, has a diameter of 8 mm and a G 1/2" connection; the kit includes material for securing the probe.

Delivery in approx. 14 days

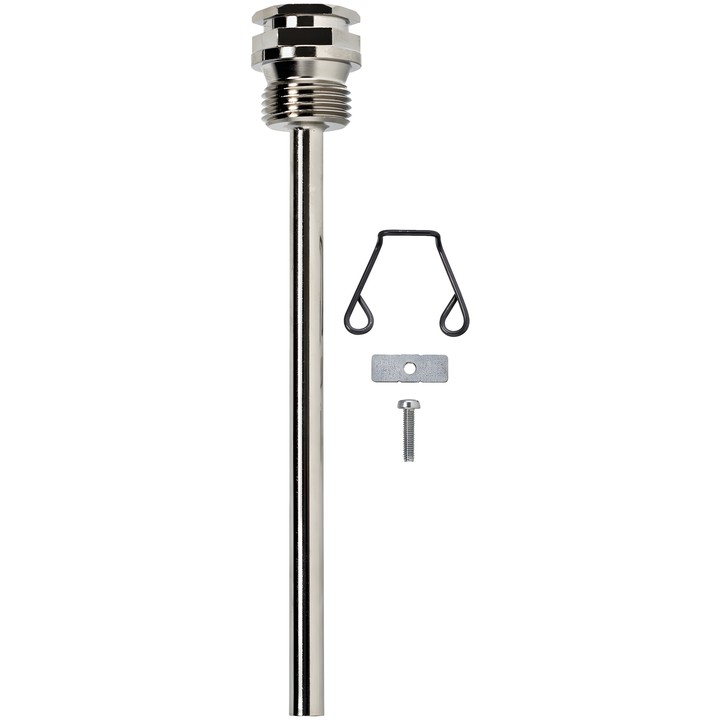

Belimo A-22P-A63 immersion sleeve kit

Nickel-plated brass immersion sleeve designed for mounting a temperature sensor. The kit includes material for securing the probe for the 01HT-1..C safety temperature limiter and the 01HT-1..A temperature monitor.

Key features

Sleeve length: 200 mm; sleeve diameter: 8 mm.
Connection: G 1/2"; SW22.
Maximum flow velocity: 3.6 m/s.
Medium: water; medium temperature: up to max. 130°C.
Material: nickel-plated brass. Turned part: CW614N (2.0401); tube: CW508L (2.0321).
Weight: 0.10 kg.
