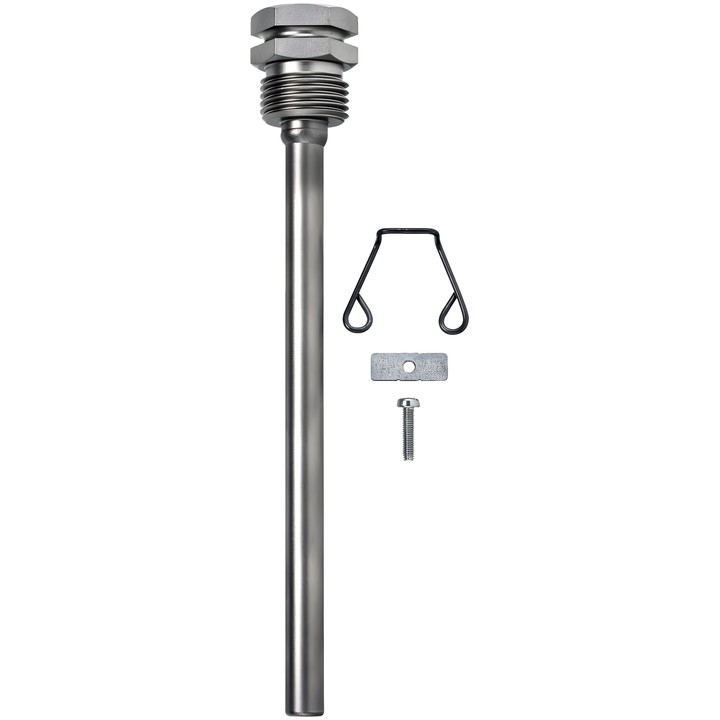

Belimo A-22P-A64 - temperature sensor pocket set

Belimo A-22P-A64 – stainless steel pocket set

The 100 mm long pocket with a G 1/2" connection is supplied with sensor mounting material. The documentation indicates its use with the 01HT-1..C safety temperature limiter and the 01HT-1..A temperature monitoring sensor.

Key data

• Pocket length: 100 mm; pocket diameter: 8 mm.
• Connection: G 1/2"; wrench size: SW22.
• Pocket material: machined part and V4A (1.4571) tube.
• Medium: water; max. flow velocity: 8.7 m/s.
• Medium temperature: up to max. 200°C.
• Weight: 0.084 kg.
