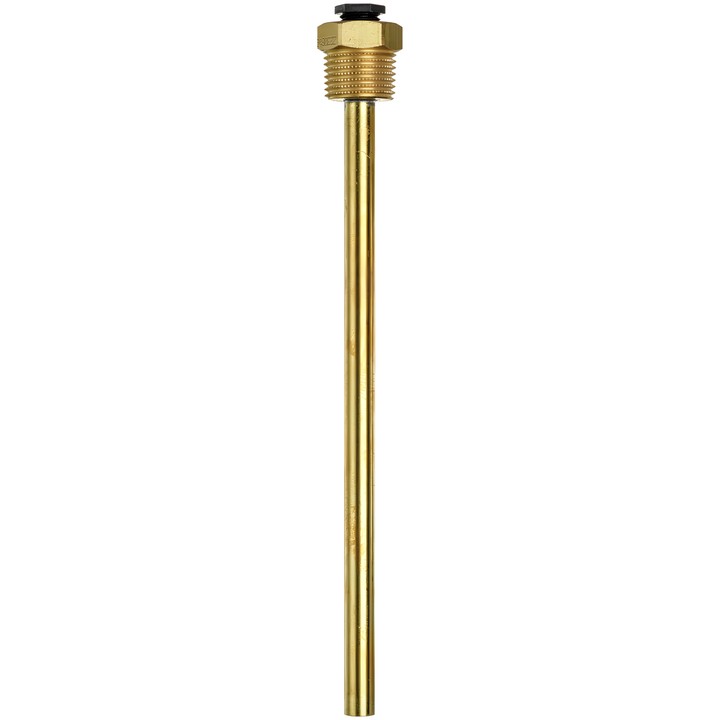

Belimo A-22P-A30 - brass thermowell for temperature sensor installation

Belimo A-22P-A30 - brass thermowell for temperature sensor installation

Belimo
zł70.97
VAT included
zł57.70 tax excluded

Brass thermowell for installing a temperature sensor, with a length of 250 mm, a diameter of 9 mm and an R 1/2" male thread. It has an integrated compression fitting and is designed for immersion and cable sensors from the 01DT.., 22DT.., 01CT.. and 22CT... series.

Delivery in approx. 14 days
Share

Belimo A-22P-A30 – brass thermowell

Thermowell for installing a temperature sensor, with an integrated compression fitting. Designed for immersion and cable sensors 01DT.., 22DT.., 01CT.. and 22CT...

Key specifications

  • Thermowell length: 250 mm; diameter: 9 mm.
  • Male thread: R 1/2"; spanner size: SW22.
  • Maximum flow velocity for A-22P-A30: 3.0 m/s.
  • Medium: water or a water-glycol mixture.
  • PN: 16; medium temperature: up to max. 130°C.
  • Probe material: brass. Thermowell materials: turned part CW614N (2.0401), tube CW508L (2.0321), pressure screw Polyamide (PA66/GF25).

  • Brand
    Belimo
  • Reference
    A-22P-A30
  • EAN13
    7630498118203

Techniczna karta katalogowa

Download (557.09KB)

Techniczna karta katalogowa – A-22P-A.. R MS

Download (544.32KB)
