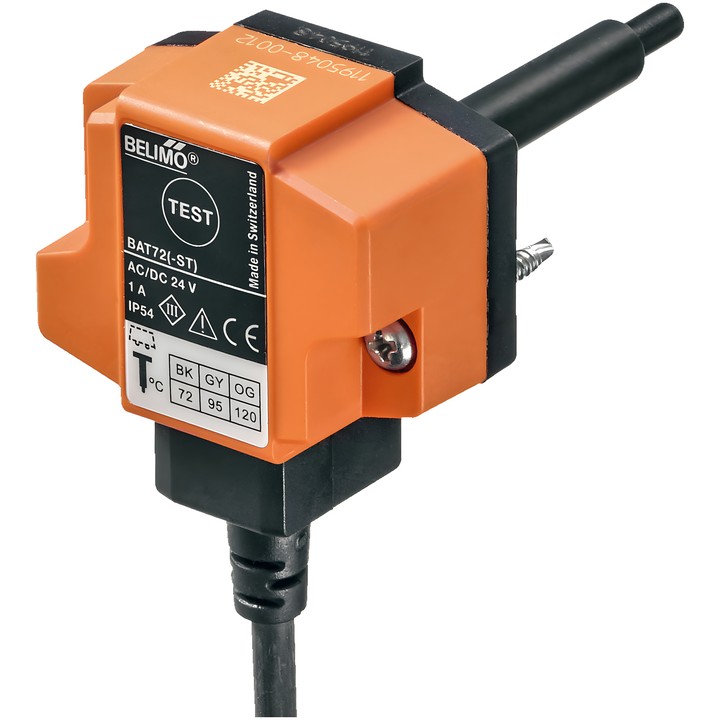

Belimo BAT72/9 - Thermoelectric release

Belimo BAT72/9 – thermoelectric release

The device is intended for fire dampers in ventilation and air-conditioning systems. When the temperature exceeds 72°C inside or outside the duct, the corresponding thermal fuse trips and permanently, irreversibly interrupts the power supply voltage. The system can be checked using the test button.

Main features and specifications

• Rated voltage: AC/DC 24 V; rated voltage frequency: 50/60 Hz.
• Operating temperature inside the duct: 72°C (black); operating temperature outside the duct: 72°C.
• Duct probe length: 90 mm.
• Power connection: 1 m cable, 2x 0.75 mm²; Betaflam cable resistant to temperatures up to 145°C.
• IEC/EN degree of protection: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
• Ambient temperature: -30...55°C [-22...131°F].
• The device meets the specific requirements of ISO 10294-4.

The thermal fuse inside the duct is replaceable. The thermal fuse outside the duct is not replaceable; if it trips, the actuator must be replaced. Installation is carried out using the factory-fitted self-drilling, self-tapping screws. Power must be supplied from an isolating transformer.
