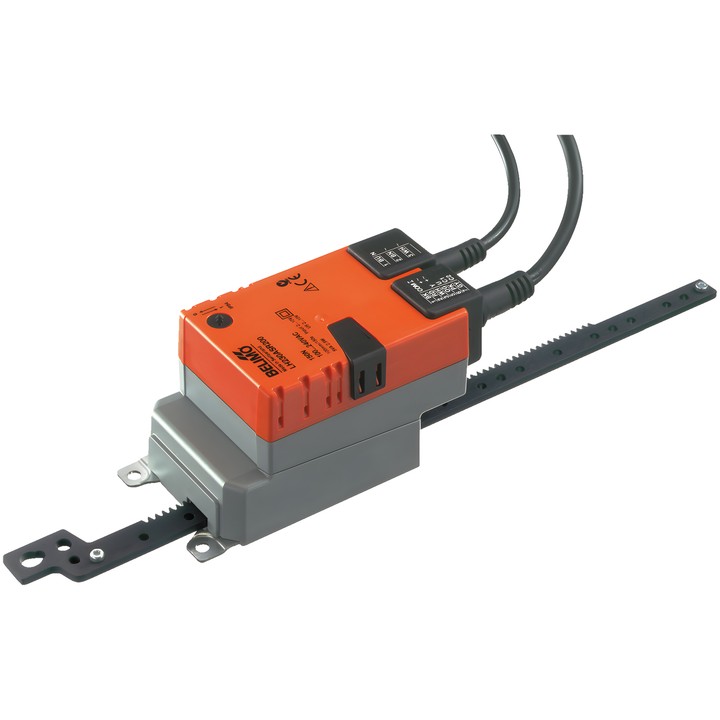

Belimo LH230ASR200 - modulating linear actuator

Belimo LH230ASR200 - modulating linear actuator

Belimo
zł801.57
VAT included
zł651.68 tax excluded

Belimo LH230ASR200 linear actuator for regulating dampers and gates in technical building systems. Force 150 N, AC 100...240 V supply and 2...10 V modulating control.

Stroke 200 mm, running time 150 s / 100 mm and 2...10 V feedback signal. IP54 protection rating.

Delivery in approx. 14 days
Share

Belimo LH230ASR200 – linear actuator

Modulating actuator for regulating dampers and gates in technical building systems. Air damper size: up to approx. 1 m².

Key features

  • Actuating force: 150 N.
  • Rated voltage: AC 100...240 V; frequency: 50/60 Hz.
  • Modulating control: 2...10 V; feedback signal: 2...10 V.
  • Stroke: 200 mm; maximum stroke length: 200 mm, fixed setting.
  • Motor running time: 150 s / 100 mm, independent of load.
  • Power consumption: 2.5 W while operating and 1 W at rest; sizing power: 4.5 VA.
  • Direction of movement selected by switch; manual adjustment by push-button with locking option.
  • Power connection: 1 m cable, 2x 0.75 mm²; control connection: 1 m cable, 4x 0.75 mm².
  • IEC/EN protection rating: IP54; IEC/EN protection class: II, reinforced insulation.
  • Ambient temperature: -30...50°C [-22...122°F].

The actuator is protected against overload and stops automatically when it reaches the end stop.

  • Brand
    Belimo
  • Reference
    LH230ASR200
  • EAN13
    7630498112010

  • AC/DC voltage
    AC 100...240 V
  • Power consumption (running)
    2.5 W
  • Power consumption (holding)
    1 W
  • Rated power
    4.5 VA
  • Control type
    DC 2...10 V
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Force
    150 N
  • Manual override
    Push-button, with locking option
  • Stroke
    200 mm
  • Running time (motor)
    150 s / 100 mm
  • Power connection
    Cable 1 m, 2x 0.75 mm²
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Direction of movement - motor
    Selectable by switch
  • Control connection
    Cable 1 m, 4x 0.75 mm²

Techniczna karta katalogowa

Download (865.51KB)

Instrukcja montażu

Download (420.1KB)

EU Declaration of Conformity – LH230ASR200

Download (32.8KB)

Environmental Declaration – LH..200..

Download (71.94KB)
