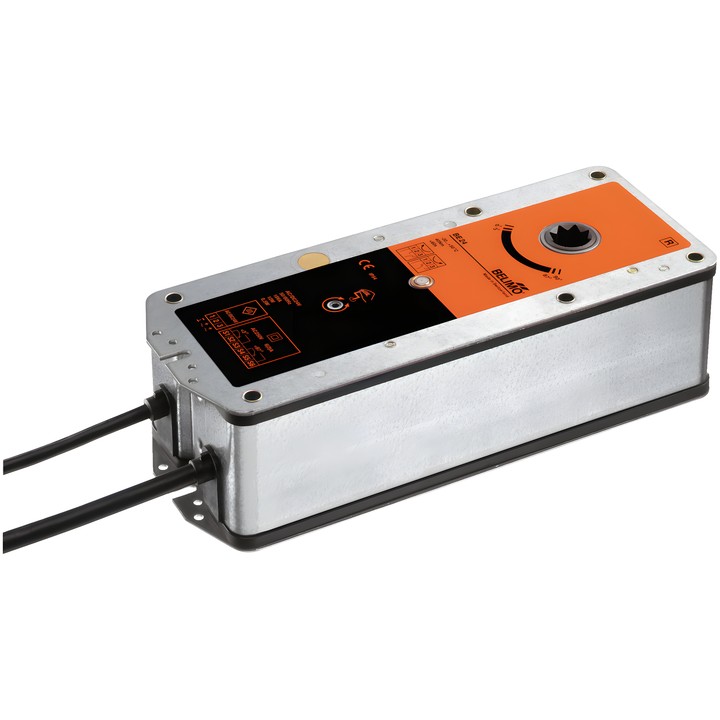

Belimo BE24 - actuator for smoke control dampers

Name: Belimo BE24 - actuator for smoke control dampers
Brand: Belimo
SKU: BE24
Price: 2809.32 PLN
Availability: OutOfStock

Belimo

zł2,809.32

VAT included

zł2,284.00 tax excluded

Belimo BE24 actuator for smoke control dampers. Torque 40 Nm, AC/DC 24 V supply and Close/Open control. Form-fit connection 14x14 mm with a continuous hollow shaft.

Equipped with 2x SPDT for position indication and a crank handle for manual override.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo BE24 – actuator for smoke control dampers

Actuator with two-point Close/Open control and mechanical position indicator. The direction of movement can be selected by left/right mounting.

Key technical data

Torque: 40 Nm.
Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
Motor running time: <60 s / 90°; angle of rotation: max. 100°.
Power consumption: 12 W during movement, 0.5 W at rest; 18 VA for cable sizing.
Auxiliary switches: 2x SPDT, switching points 3° / 87°.
Mechanical connection: form-fit connection 14x14 mm, continuous hollow shaft.
Power and control connection: 1 m cable, 3x 0.75 mm², FRNC (halogen-free); auxiliary switch connection: 1 m cable, 6x 0.75 mm², FRNC (halogen-free).
Manual override using a crank handle; crank handle, indicator and protective bag included.
Degree of protection: IP54; IEC/EN protection class III, Safety Extra-Low Voltage (SELV).
Ambient temperature: -30...50°C [-22...122°F].

The actuator is adapted to the smoke control damper and mounted on it by the damper manufacturer. The two built-in auxiliary switches must be used either at mains voltage or at safety extra-low voltage; combining these voltage types is not permitted.
