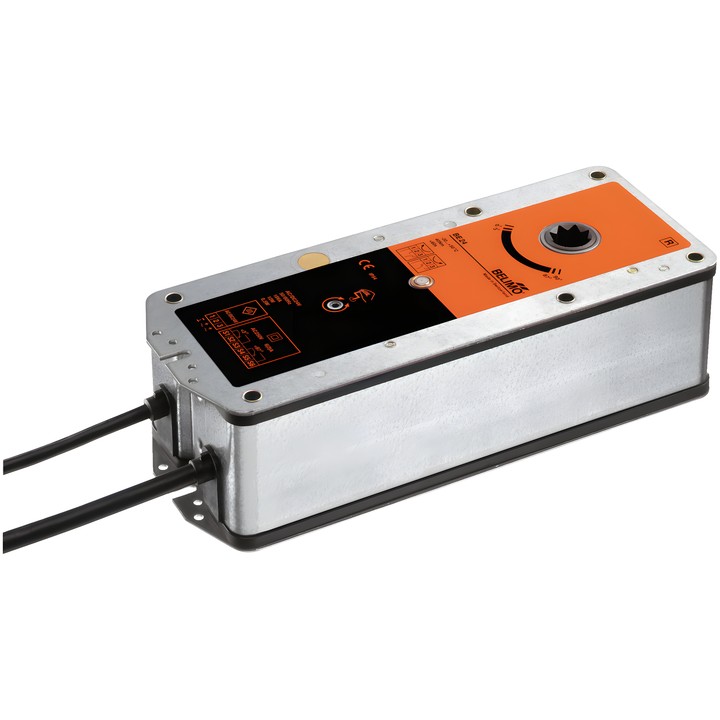

Belimo BE24-12 - actuator for fire ventilation dampers

Name: Belimo BE24-12 - actuator for fire ventilation dampers
Brand: Belimo
SKU: BE24-12
Price: 2809.32 PLN
Availability: OutOfStock

Belimo

zł2,809.32

VAT included

zł2,284.00 tax excluded

Belimo BE24-12 actuator for fire ventilation dampers, with a torque of 40 Nm and Close/Open control. AC/DC 24 V supply, motor running time <60 s / 90° and 12x12 mm form-fit connection with a continuous hollow shaft.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo BE24-12 – actuator for fire ventilation dampers

Actuator with two-wire Close/Open control, two auxiliary switches for signalling end positions and a mechanical position indicator. It is adapted to the damper and installed by the damper manufacturer.

Key technical data

Motor torque: 40 Nm.
Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
Power consumption during operation: 12 W; at rest: 0.5 W; for cable sizing: 18 VA.
Control type: Close/Open; motor running time: <60 s / 90°.
Auxiliary switches: 2x SPDT, switching points 3° / 87°.
Mechanical connection: 12x12 mm form-fit connection, continuous hollow shaft.
Direction of movement selected by L/R mounting; manual override using a crank.
Rotation angle: max. 100°; mechanical position indicator with pointer.
Power and control connection: 1 m cable, 3x 0.75 mm², FRNC (halogen-free). Auxiliary switch connection: 1 m cable, 6x 0.75 mm², FRNC (halogen-free).
Degree of protection IEC/EN: IP54; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).
Ambient temperature: -30...50°C [-22...122°F].

Included: hand crank, pointer and protective bag.
