Belimo UH24Y-SR-L.1 - modulating linear actuator

Belimo UH24Y-SR-L.1 - modulating linear actuator

Belimo
zł576.87
VAT included
zł469.00 tax excluded

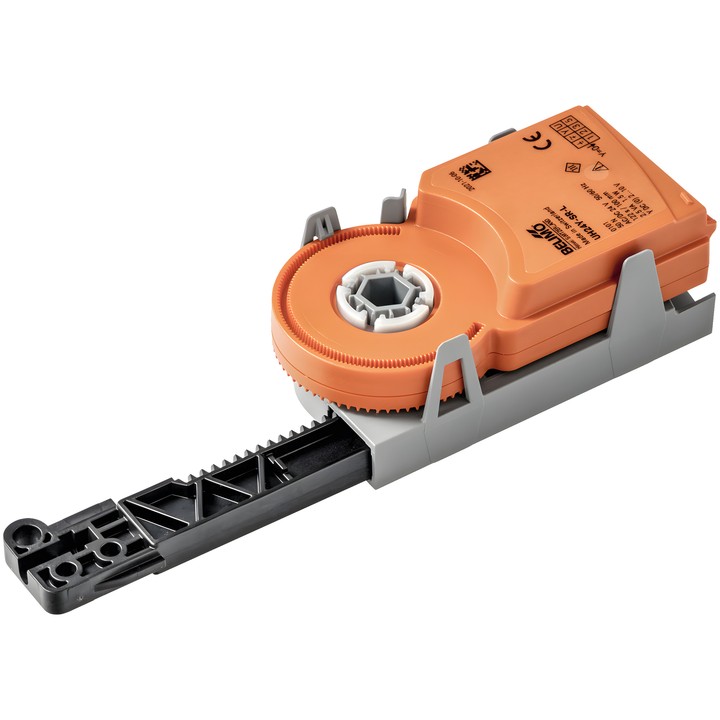

Belimo UH24Y-SR-L.1 linear actuator with a force of 50 N, powered by AC/DC 24 V. Modulating control, operating range Y 2...10 V and position feedback signal U 2...10 V.

Maximum stroke 60 mm, adjustable in 1 mm increments; motor running time 122 s / 100 mm. IP20 protection rating. Multipack of 40 pcs.

Product unavailable
Share

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo UH24Y-SR-L.1 linear actuator

Modulating actuator designed for factory installation in technical equipment for building systems. Intended for stationary heating, ventilation and air-conditioning systems.

Key features and specifications

  • Motor force: 50 N; rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
  • Modulating control; operating range Y: 2...10 V; position feedback signal U: 2...10 V.
  • Stroke: 60 mm; maximum stroke length 60 mm, adjustable in 1 mm increments. Stroke limitation by mechanical stops on both sides within the range 30...60mm.
  • Motor running time: 122 s / 100 mm, corresponding to 74 s / 60 mm.
  • Power consumption during operation: 1.5 W; in standby position: 0.5 W; for cable sizing: 2.5 VA.
  • Power and control connection: Molex Mini-Fit Jr. 39303045 connector. The cable-side mating connector is not included in the scope of delivery.
  • Motor direction of movement: counterclockwise rotation (ccw); manual override: no.
  • IEC/EN protection rating: IP20; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
  • Ambient temperature: -30...50°C [-22...122°F].
  • Multipack: 40 pcs.

  • Brand
    Belimo
  • Reference
    UH24Y-SR-L.1
  • EAN13
    7630498122538

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    1.5 W
  • Power consumption (holding)
    0.5 W
  • Rated power
    2.5 VA
  • Power supply control connection
    Connection plug (cable-side mating connector not included)
  • Control type
    Analog
  • Protection rating
    IP20
  • NEMA protection rating
    NEMA 1
  • Enclosure type
    UL Enclosure Type 1
  • Force
    50 N
  • Manual override
    No
  • Stroke
    60 mm
  • Running time (motor)
    122 s / 100 mm
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Connection plug
    Molex Mini-Fit Jr. 39303045 connector
  • Direction of movement - motor
    counterclockwise rotation (ccw)

Techniczna karta katalogowa

Download (1.27MB)

Instrukcja montażu

Download (187.57KB)

EU Declaration of Conformity – UH24Y-SR-L.1

Download (308.69KB)

Environmental Declaration – UH..

Download (70.85KB)
