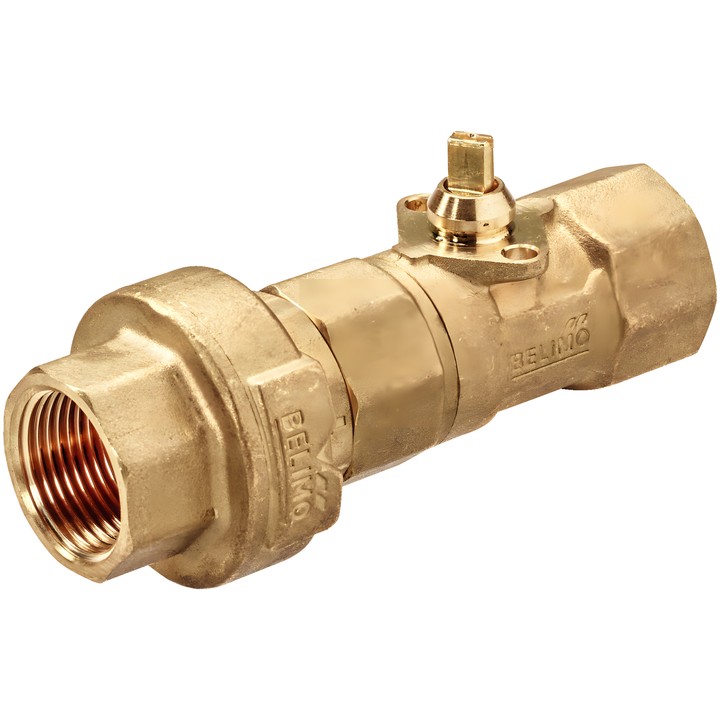

Belimo C215QFLH-E - 2-way PI flow limiter valve

Name: Belimo C215QFLH-E - 2-way PI flow limiter valve
Brand: Belimo
SKU: C215QFLH-E
Price: 608.85 PLN
Availability: OutOfStock

Belimo

zł608.85

VAT included

zł495.00 tax excluded

2-way PI flow limiter valve for closed water systems. DN 15, Rp 1/2" female thread, PN 25, V'nom 650 l/h.

Differential pressure range: 20...280 kPa. Fluid temperature: 2...80°C [36...176°F].

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo C215QFLH-E

2-way PI flow limiter valve for closed water systems. Designed for on/off control on the water side of fan coil units and heating and cooling ceilings. The integrated limiter maintains a constant flow rate at a differential pressure of 20...280 kPa when the valve is open at an angle of 90°.

Key technical data

Type: C215QFLH-E; version: 2-way.
DN 15; Rp 1/2" female thread; PN 25.
V'nom 650 l/h (0.18 l/s).
Fluid: water; fluid temperature: 2...80°C [36...176°F].
Differential pressure: ∆p 20...280 kPa; closing pressure: 520 kPa.
50 kPa to ensure quiet operation.
Tightness: bubble-tight, leakage class A (EN 12266-1).
Valve body: brass; closing element: chrome-plated brass.
Rotation angle: 90°.

Permissible installation position: from vertical to horizontal in relation to the stem. Installation with the stem pointing downwards is not permitted; observe the flow direction indicated by the arrow on the body.
