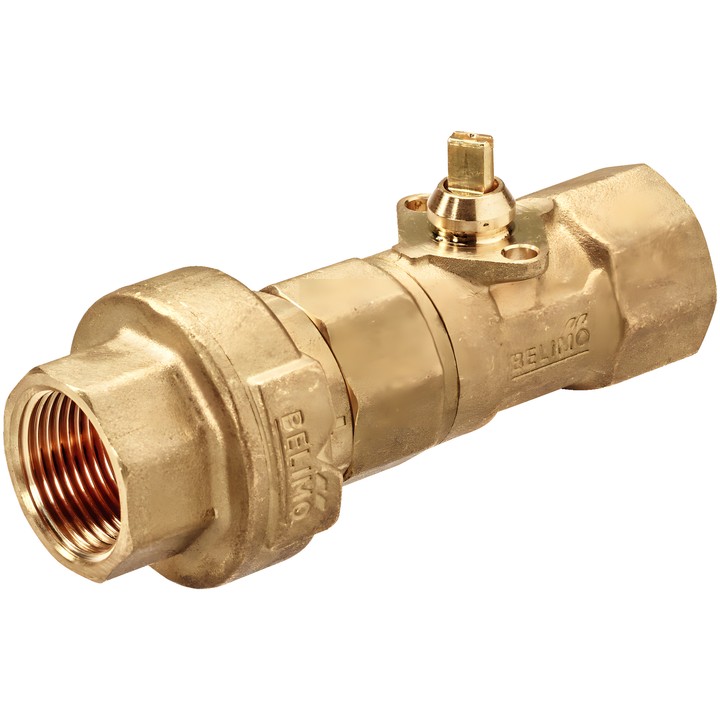

Belimo C215QFLH-F - 2-way PI flow limiting valve DN 15

Name: Belimo C215QFLH-F - 2-way PI flow limiting valve DN 15
Brand: Belimo
SKU: C215QFLH-F
Price: 608.85 PLN
Availability: OutOfStock

Belimo

zł608.85

VAT included

zł495.00 tax excluded

2-way PI flow limiting valve for closed water systems. Model C215QFLH-F has an Rp 1/2" female threaded connection, PN 25 and V'nom 1300 l/h.

Designed for open/close control on the water side of fan coil units and heating and cooling ceilings. Fluid temperature: 2...80°C [36...176°F].

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo C215QFLH-F PI flow limiting valve

2-way valve with an integrated flow limiter, designed for closed water systems. At a differential pressure of 20...280 kPa, the limiter maintains a constant flow rate with the valve open to an angle of 90°.

Key features and specifications

DN 15, PN 25; connection: Rp 1/2" female thread.
Nominal flow V'nom: 1300 l/h (0.36 l/s; 1.3 m³/h).
Fluid: water; fluid temperature: 2...80°C [36...176°F].
Differential pressure: ∆p 20...280 kPa; closing pressure ∆ps: 520 kPa.
50 kPa to ensure quiet operation.
Tightness: bubble-tight, leakage rate class A (EN 12266-1).
Valve body: brass; closing element: chrome-plated brass.
Rotation angle: 90°; installation from vertical to horizontal, without the stem pointing downwards.

The ball valve opens counterclockwise and closes clockwise. Observe the flow direction indicated by the arrow on the body.
