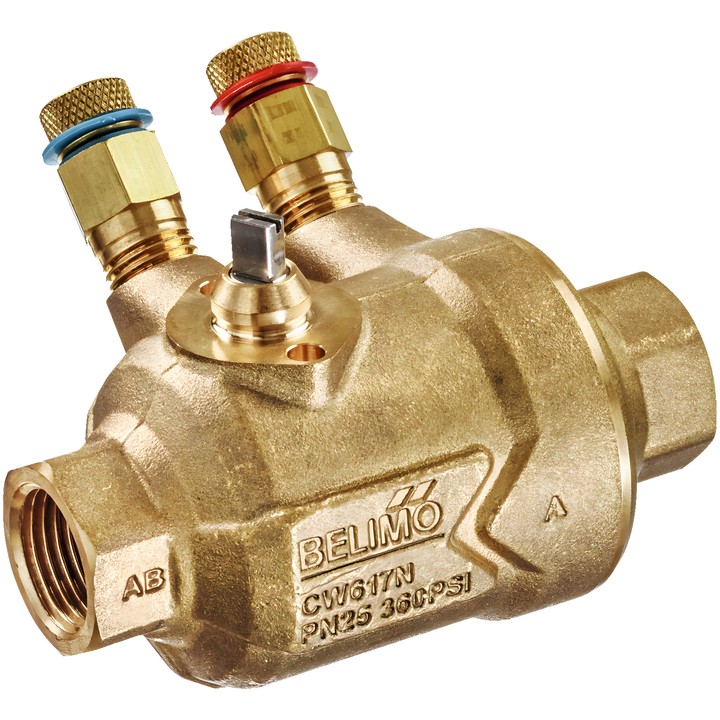

Belimo C215QPT-B - 2-way PI zone valve DN 15

Name: Belimo C215QPT-B - 2-way PI zone valve DN 15
Brand: Belimo
SKU: C215QPT-B
Price: 597.24 PLN
Availability: BackOrder

Belimo

zł597.24

VAT included

zł485.56 tax excluded

Belimo C215QPT-B is a 2-way pressure-independent zone valve with test ports (P/T). It has an Rp 1/2" female thread, a nominal size of DN 15 and a nominal flow rate of V'nom 210 l/h.

Designed for closed water systems. The differential pressure range is ∆p 16...350 kPa, and the medium temperature is -20...120°C [-4...248°F] (2...90°C with an actuator).

Delivery in approx. 14 days

Belimo C215QPT-B zone valve

2-way PI zone valve (PIQCV) for water-side control in ventilation and heating systems. Integrated pressure regulation maintains a flow rate appropriate to the valve position within a differential pressure range of 16...350 kPa. The C215QPT-B version has two test ports (P/T) for measuring the pressure drop across the valve.

Key features and specifications

Design: 2-way; DN 15; PN 25.
Connection: Rp 1/2" female thread.
Nominal flow rate: V'nom 210 l/h (0.058 l/s).
Differential pressure: ∆p 16...350 kPa; closing pressure: 1400 kPa.
Medium: water, water with max. 50% vol. glycol.
Medium temperature: -20...120°C [-4...248°F]; 2...90°C with an actuator.
Flow characteristic: equal percentage.
Tightness: bubble-tight, leakage rate class A (EN 12266-1).
Valve body: brass; closing element and stem: stainless steel.
Test ports (P/T) at the valve inlet and outlet enable measurement of the total pressure drop.

The valve is designed for use with a rotary actuator. Permitted installation: from vertical to horizontal relative to the stem; installation with the stem pointing downwards is not permitted.
