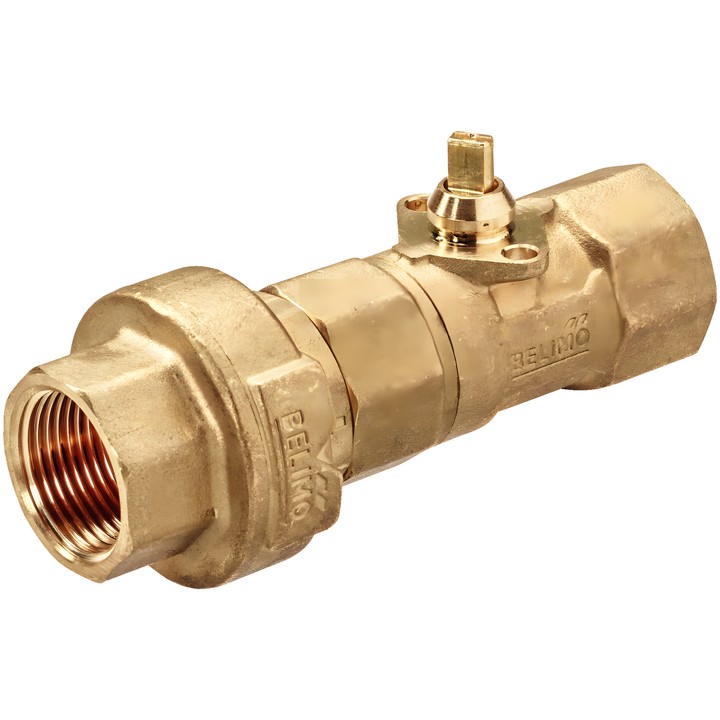

Belimo C220QFLH-G0 - 2-way PI flow limiter valve

Name: Belimo C220QFLH-G0 - 2-way PI flow limiter valve
Brand: Belimo
SKU: C220QFLH-G0
Price: 722.01 PLN
Availability: OutOfStock

Belimo

zł722.01

VAT included

zł587.00 tax excluded

Belimo C220QFLH-G0 is a 2-way PI flow limiter valve for closed water systems. DN 20, PN 25, Rp 3/4" female thread, V'nom 1500 l/h.

It operates with water at a temperature of 2...80°C [36...176°F]. The integrated flow limiter maintains a constant flow rate at a differential pressure of ∆p 20...280 kPa and a valve opening angle of 90°.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo C220QFLH-G0 – PI flow limiter valve

2-way valve for closed water systems, designed for on/off water-side control of fan coil units and heating and cooling ceilings. The integrated flow limiter maintains a constant flow rate at ∆p 20...280 kPa when the valve is open at an angle of 90°.

Key features and specifications

Model: C220QFLH-G0; DN 20; PN 25.
Connection: Rp 3/4" female thread.
Nominal flow rate V'nom: 1500 l/h (0.42 l/s; 1.5 m³/h).
Medium: water; medium temperature: 2...80°C [36...176°F].
Differential pressure ∆p: 20...280 kPa; closing pressure ∆ps: 520 kPa.
Differential pressure recommendation: 50 kPa to ensure quiet operation.
Tightness: bubble-tight, leakage rate class A (EN 12266-1).
Valve body and stem: brass; closing element: chrome-plated brass.
Rotational angle: 90°; permitted installation position: from vertical to horizontal, do not install with the stem pointing downwards.

During installation, observe the flow direction indicated by the arrow on the body. Installation on the return line is recommended.
