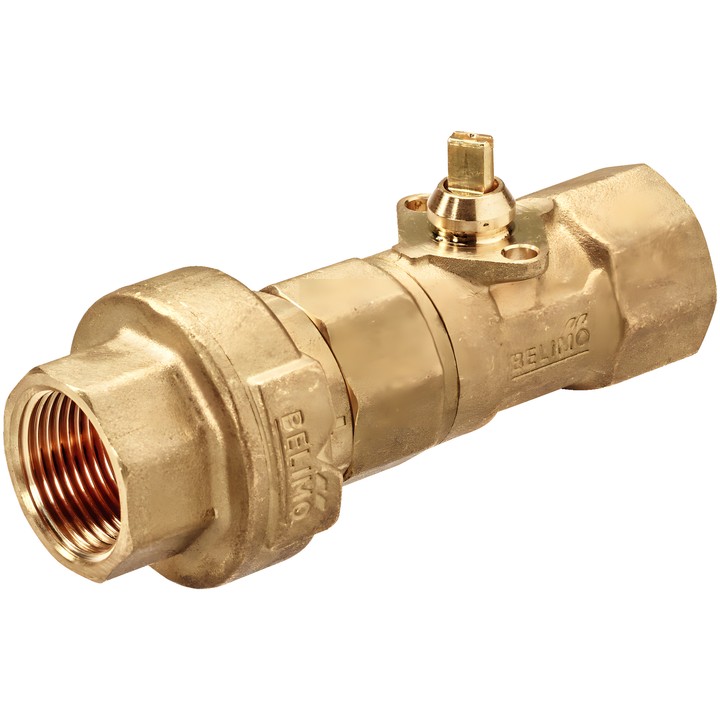

Belimo C220QFLH-G - 2-way PI flow limiter valve

Name: Belimo C220QFLH-G - 2-way PI flow limiter valve
Brand: Belimo
SKU: C220QFLH-G
Price: 722.01 PLN
Availability: OutOfStock

Belimo

zł722.01

VAT included

zł587.00 tax excluded

2-way PI flow limiter valve for closed water systems. DN 20, PN 25, Rp 3/4" female thread and nominal flow V'nom 1900 l/h.

Designed for on/off water-side control in fan coil units and heating and cooling ceilings. Medium temperature: 2...80°C [36...176°F].

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo C220QFLH-G – PI flow limiter valve

2-way valve for closed water systems. The integrated limiter maintains a constant flow rate at a differential pressure of 20...280 kPa when the valve is open at 90°.

Key technical data

DN 20, PN 25; connection: Rp 3/4" female thread in accordance with ISO 7-1.
Nominal flow V'nom: 1900 l/h (0.52 l/s; 1.9 m³/h).
Medium: water; medium temperature: 2...80°C [36...176°F].
Differential pressure: 20...280 kPa; closing pressure ∆ps: 520 kPa.
Recommended differential pressure for quiet operation: 50 kPa.
Tightness: bubble-tight, leakage rate class A (EN 12266-1).
Valve body: brass; closing element: chrome-plated brass.
Angle of rotation: 90°; installation from vertical to horizontal, with the stem not pointing downwards.

The valve is designed for on/off water-side control in fan coil units and heating and cooling ceilings. Observe the flow direction indicated by the arrow on the body.
