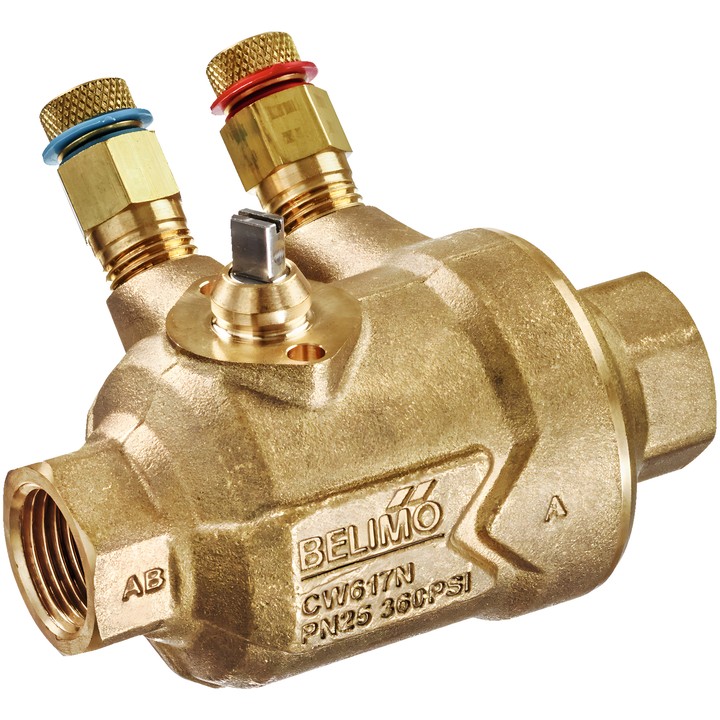

Belimo C220QPT-F - 2-way PI zone valve with measuring ports

Belimo C220QPT-F – PI zone valve

A 2-way pressure-independent zone valve designed for water-side control in ventilation and heating systems. The integrated pressure regulator maintains a constant flow rate for a given valve opening position within a differential pressure range of 16...350 kPa. Measuring ports (P/T) allow the pressure drop across the valve to be measured.

Key features and parameters

• Type: C220QPT-F; 2-way design, DN 20, PN 25.
• Connection: Rp 3/4" female thread.
• Nominal flow rate V'nom: 980 l/h (0.272 l/s).
• Differential pressure: ∆p 16...350 kPa; closing pressure ∆ps 1400 kPa.
• Fluid: water or water with up to 50% vol. glycol.
• Fluid temperature: -20...120°C [-4...248°F]; with actuator 2...90°C.
• Flow characteristic: equal percentage; tightness: bubble-tight, leakage class A.
• Valve body: brass; closing element and stem: stainless steel.
• Measuring ports (P/T) at the inlet (P1) and outlet (P3).

The valve is designed for snap-on actuator installation. Permitted mounting position: from vertical to horizontal relative to the stem; installation with the stem pointing downwards is not permitted.
