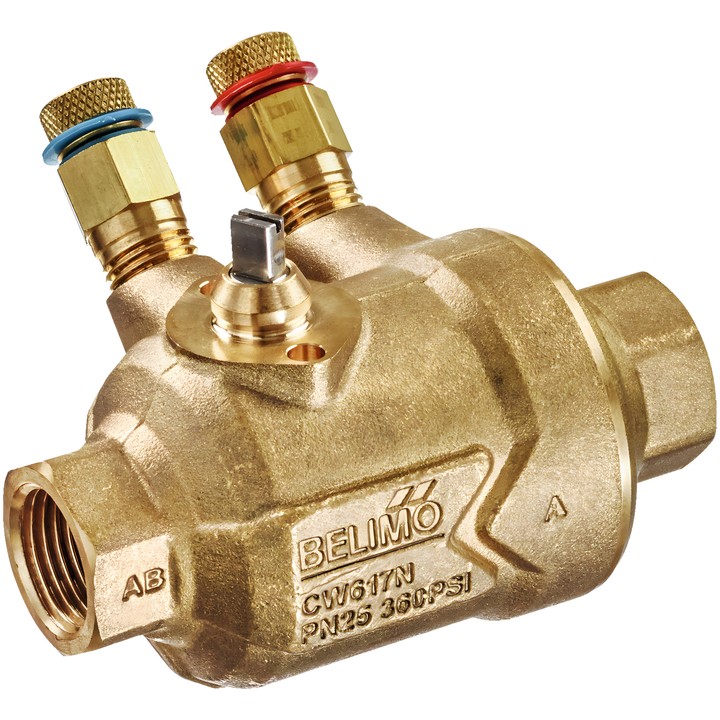

Belimo C215QPT-D - 2-way PI zone valve DN 15

Name: Belimo C215QPT-D - 2-way PI zone valve DN 15
Brand: Belimo
SKU: C215QPT-D
Price: 597.24 PLN
Availability: BackOrder

Belimo

zł597.24

VAT included

zł485.56 tax excluded

Belimo C215QPT-D is a 2-way PI zone valve with Rp 1/2" female thread and measuring ports (P/T). The nominal flow rate V'nom is 420 l/h, and the differential pressure range ∆p is 16...350 kPa.

Designed for closed water systems and water-side control in ventilation and heating systems.

Delivery in approx. 14 days

Belimo C215QPT-D – PI zone valve

2-way valve for modulating water-side flow control. The integrated pressure regulator maintains a constant flow rate for a given valve position at a differential pressure in the range 16...350 kPa. The C215QPT-D version has measuring ports (P/T), which enable measurement of the pressure drop between the valve inlet and outlet.

Key features and specifications

DN 15, PN 25; Rp 1/2" female thread.
Nominal flow rate V'nom: 420 l/h (0.117 l/s).
Differential pressure ∆p: 16...350 kPa; closing pressure ∆ps: 1400 kPa.
Medium: water or water with up to 50% by volume glycol.
Medium temperature: -20...120°C [-4...248°F]; with actuator 2...90°C.
Flow characteristic: equal percentage; tightness: bubble-tight, leakage class A.
Valve body: brass; closing element and stem: stainless steel.
Measuring ports (P/T) at the valve inlet and outlet.

Permitted mounting position: from vertical to horizontal relative to the stem; mounting with the stem pointing downwards is not permitted. Observe the flow direction indicated by the arrow on the body.
