Belimo C620QPT-G+BAC - 6-way PI zone valve

Belimo C620QPT-G+BAC – 6-way PI zone valve

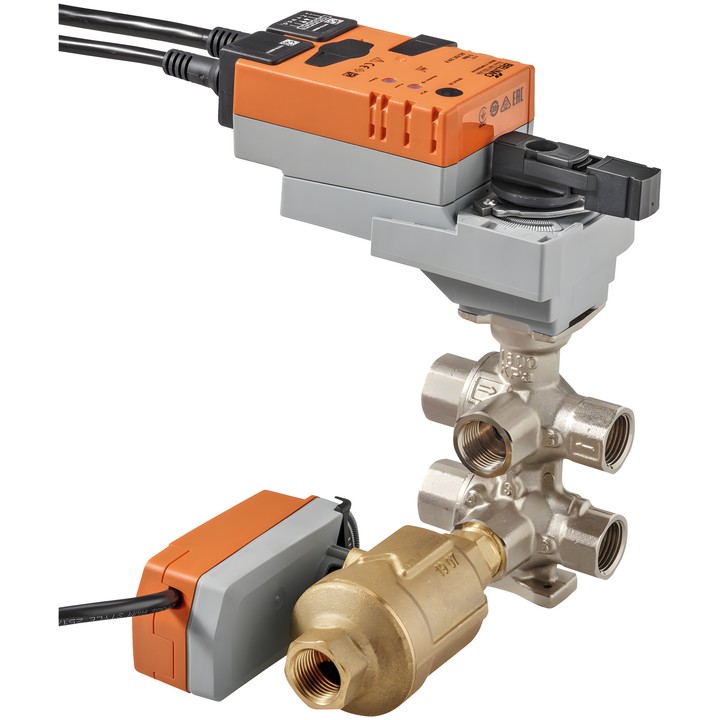

Device for closed water systems. The 6-way valve switches between cooling and heating sequences, while the 2-way PIQCV regulates flow according to the control signal. The maximum flows of both sequences can be set separately.

Key features and specifications

• DN 20, PN 16; Rp 3/4" female thread.
• V'nom 2100 l/h; V'max setting range 600...2100 l/h.
• Maximum differential pressure ∆pmax 350 kPa; flow stabilisation by the PIQCV at a differential pressure of 16...350 kPa across this valve.
• Medium: water or water with up to 50% vol. glycol; medium temperature 6...80°C [43...176°F].
• Linear flow characteristic; bubble-tight, leakage rate class A (EN 12266-1).
• Modulating, communicative or hybrid control; control signal Y 2...10 V, feedback signal U 2...10 V.
• Communication: BACnet MS/TP, Modbus RTU, MP-Bus.
• AC/DC 24 V supply; power consumption 2.1 W during operation, 1.9 W at rest; sizing power 4.6 VA.
• Electrical connection: 1 m cable, 6x 0.75 mm²; IEC/EN IP40 degree of protection; IEC/EN protection class III, Safety Extra-Low Voltage (SELV).
• Valve body: nickel-plated brass (6-way CCV) and brass (PIQCV).
• Operated via NFC using Belimo Assistant 2; manual adjustment is possible.

Permitted mounting position: from vertical to horizontal in relation to the stem. Installation with the stem pointing downwards is not permitted.
