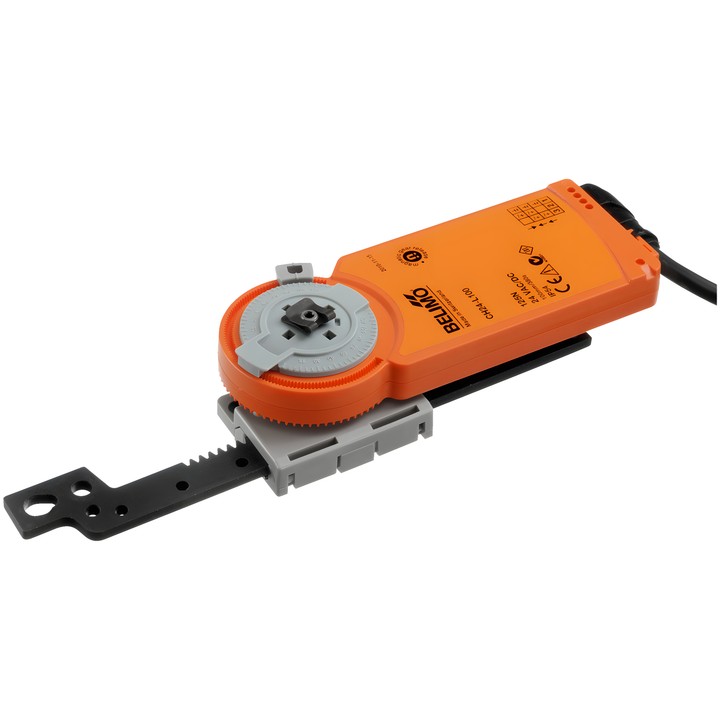

Belimo CH24-SR-R60.2 - modulating linear actuator

Name: Belimo CH24-SR-R60.2 - modulating linear actuator
Brand: Belimo
SKU: CH24-SR-R60.2
Price: 1189.41 PLN
Availability: OutOfStock

Belimo

zł1,189.41

VAT included

zł967.00 tax excluded

Belimo CH24-SR-R60.2 linear actuator with a force of 125 N, AC/DC 24 V supply and 2...10 V modulating control. The maximum stroke is 60 mm, and the motor running time is 380 s / 100 mm.

2...10 V position feedback, manual adjustment using a magnet and IP54 protection rating. Multipack of 20 pcs.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo CH24-SR-R60.2 linear actuator

Modulating actuator designed to position dampers and valves in technical building systems. The Y control signal determines the actuator position, while the U voltage is used for position indication.

Key features and specifications

Actuating force: 125 N; rated voltage: AC/DC 24 V, 50/60 Hz.
Y control range: 2...10 V; U position feedback: 2...10 V.
Stroke: 60 mm; the maximum stroke can be adjusted in 20 mm increments.
Motor running time: 380 s / 100 mm.
Power consumption during operation: 1 W; in standby position: 0.5 W; for cable sizing: 1.5 VA.
Direction of movement at Y = 0 V: extended. Manual adjustment using a magnet.
Power and control connection: 1 m cable, 4x 0.75 mm².
IEC/EN protection rating: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
Ambient temperature: -30...50°C [-22...122°F].
Outer packaging: Multipack 20 pcs.
