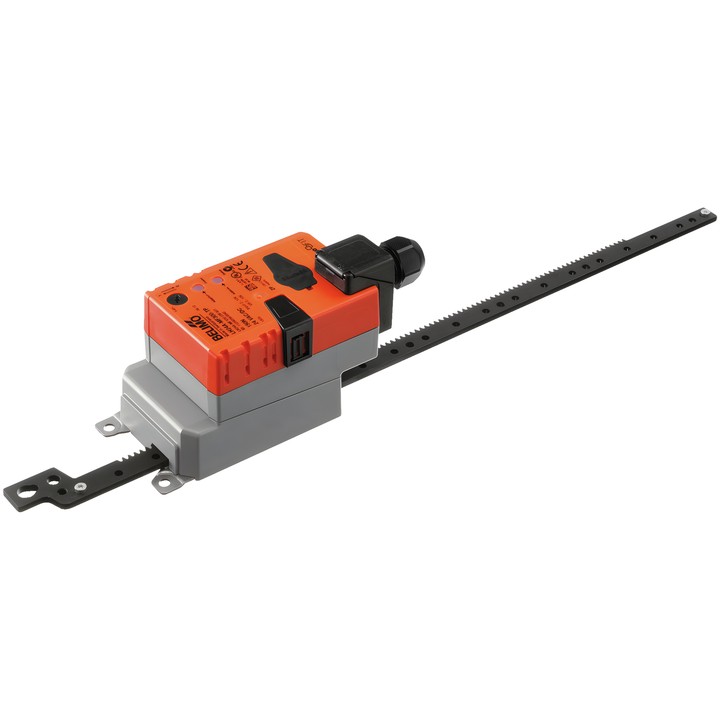

Belimo LH24A-MP300-TP - linear actuator

Belimo LH24A-MP300-TP - linear actuator

Belimo
zł754.08
VAT included
zł613.07 tax excluded

Belimo LH24A-MP300-TP linear actuator with a force of 150 N, powered by AC/DC 24 V. Supports 2...10 V modulating control and MP-Bus communication. Maximum stroke is 300 mm, adjustable in 20 mm increments.

Running time is 150 s / 100 mm, and the protection rating is IP54.

Delivery in approx. 14 days
Share

Belimo LH24A-MP300-TP linear actuator

Communicating linear actuator for regulating dampers and slide valves in technical building systems. According to the technical data sheet, it is designed for air dampers with an area of up to approx. 1 m².

Key features and specifications

  • Actuator force: 150 N; rated voltage: AC/DC 24 V, 50/60 Hz.
  • Modulating control: 2...10 V; communication: MP-Bus; position feedback signal: 2...10 V.
  • Stroke: max. 300 mm, adjustable in 20 mm increments; mechanical stroke limitation on both sides.
  • Running time: 150 s / 100 mm; adjustable running time: 70...270 s / 100 mm.
  • Power consumption during operation: 2.5 W; in the idle position: 1.2 W; sizing power: 5 VA.
  • Power and control connection: 4 mm² terminals (ø4...10 mm, 4-core cable).
  • Direction of movement selected by switch; manual adjustment by push-button, with locking option.
  • Can connect a passive or active sensor, or a switching contact, and transmit its signal via MP-Bus.
  • Protection rating IEC/EN IP54; protection class IEC/EN III, Safety Extra-Low Voltage (SELV).
  • Ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    LH24A-MP300-TP
  • EAN13
    7630498120930

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    2.5 W
  • Power consumption (holding)
    1.2 W
  • Rated power
    5 VA
  • Power supply control connection
    4 mm² terminals (ø4...10 mm cable, 4-core)
  • Control type
    MP-Bus DC 2...10 V DC 0.5...10 V
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Force
    150 N
  • Manual override
    Push-button, with locking option
  • Stroke
    300 mm
  • Running time (motor)
    150 s / 100 mm
  • Variable motor running time
    70...270 s / 100 mm
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Direction of movement - motor
    Selectable by switch

Techniczna karta katalogowa

Download (1.49MB)

Instrukcja montażu

Download (343.87KB)

Techniczna karta katalogowa – LH24A-MP300-TP

Download (1.49MB)

EU Declaration of Conformity – LH24A-MP300-TP

Download (32.85KB)

Environmental Declaration – LH..300..

Download (71.88KB)
