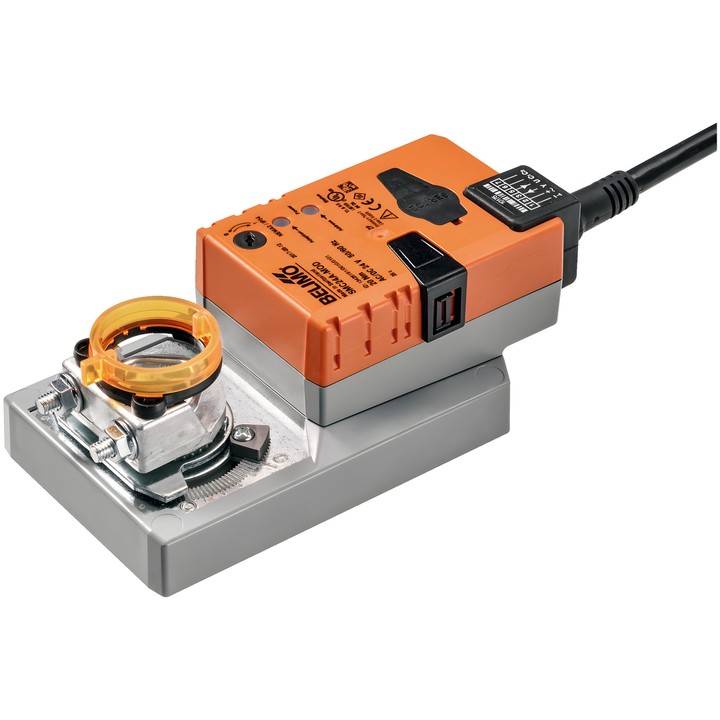

Belimo SMC24A-MOD - rotary actuator for dampers

Belimo SMC24A-MOD - rotary actuator for dampers

Belimo
zł2,249.67
VAT included
zł1,829.00 tax excluded

Communicating rotary actuator for dampers in technical building systems. Torque 20 Nm, AC/DC 24 V supply and running time 35 s / 90°.

Supports BACnet MS/TP, Modbus RTU and MP-Bus, as well as analogue control. Y operating range is 2...10 V; adjustable range is 0.5...10 V.

Product unavailable
Share

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo SMC24A-MOD – actuator for dampers

Communicating actuator designed to position dampers in stationary heating, ventilation and air-conditioning systems. According to the technical data sheet, it is intended for air dampers with an area of up to approx. 4 m².

Key features and specifications

  • Torque: 20 Nm; rated voltage: AC/DC 24 V, 50/60 Hz.
  • Modulating, communicating and hybrid control; communication: BACnet MS/TP, Modbus RTU, MP-Bus.
  • Y operating range: 2...10 V; adjustable Y operating range: 0.5...10 V.
  • Motor running time: 35 s / 90°; adjustable running time: 35...150 s.
  • Rotation angle: max. 95°, with adjustable mechanical end stops on both sides.
  • Power consumption during operation: 4 W; in standby position: 1.5 W; for cable sizing: 7 VA.
  • Reversible universal mounting clamp for shafts 10...20 mm; 1 m power and control cable, 6x 0.75 mm².
  • Direction of movement selected by 0/1 switch; manual adjustment by push-button with lock option; mechanical position indicator.
  • Can be connected to a passive or active sensor, or a sensor with a switching contact, and transmit its signal via the bus.
  • Degree of protection IEC/EN: IP54; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV); ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    SMC24A-MOD

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    4 W
  • Power consumption (holding)
    1.5 W
  • Rated power
    7 VA
  • Power supply control connection
    Cable 1 m, 6x 0.75 mm²
  • Control type
    BACnet MS/TP Modbus RTU MP-Bus DC 2...10 V DC 0.5...10 V Hybrid (communicating/analogue)
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    35 s / 90°
  • Variable motor running time
    35...150 s
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    20 Nm
  • Direction of movement - motor
    Selectable via switch 0/1
  • Rotational angle
    95°
  • Mechanical connection
    Reversible universal mounting clamp 10...20 mm

Techniczna karta katalogowa

Download (1.83MB)

Instrukcja montażu

Download (744.64KB)

Techniczna karta katalogowa – SMC24A-MOD

Download (1.83MB)

Environmental Declaration – SM..

Download (72.48KB)
