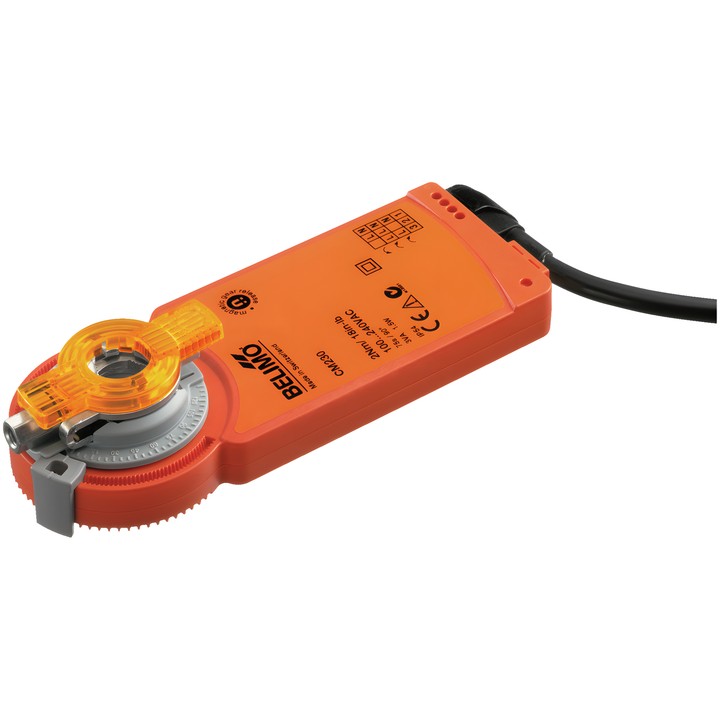

Belimo CM230G-L - damper actuator

Name: Belimo CM230G-L - damper actuator
Brand: Belimo
SKU: CM230G-L
Price: 436.87 PLN
Availability: BackOrder

Belimo

zł436.87

VAT included

zł355.18 tax excluded

The Belimo CM230G-L damper actuator delivers 2 Nm of torque and is powered by AC 100...240 V. It supports Open/Close and 3-point control; running time is 75 s / 90°.

It features a universal shaft clamp for 6...12.7 mm shafts and manual override using a magnet. IP66 protection requires the rear of the actuator to be mounted tightly against the damper housing.

Delivery in approx. 14 days

Belimo CM230G-L – damper actuator

An actuator designed to control air dampers in building services installations. According to the technical data sheet, it is intended for dampers with an area of up to approx. 0.4 m².

Key features and specifications

Torque: 2 Nm.
Rated voltage: AC 100...240 V; frequency: 50/60 Hz.
Control: Open/Close, 3-point.
Motor running time: 75 s / 90°; direction of rotation: counter-clockwise (ccw).
Rotation angle: 0...287.5°; adjustable using mechanical end stops.
Power consumption: 1.5 W while running, 1 W at rest; power rating for cable sizing: 3 VA.
Mechanical connection: universal shaft clamp for 6...12.7 mm shafts. Power and control connection: 1 m cable, 3x 0.75 mm².
Manual override using a magnet; mechanical position indicator.
IEC/EN protection rating: IP66; IEC/EN protection class: II, reinforced insulation.
Ambient temperature: -30...50°C [-22...122°F].

Installation note: To ensure IP66 protection, mount the rear of the actuator tightly against the damper housing. If the device is installed after being turned 180°, only IP54 protection is guaranteed.
