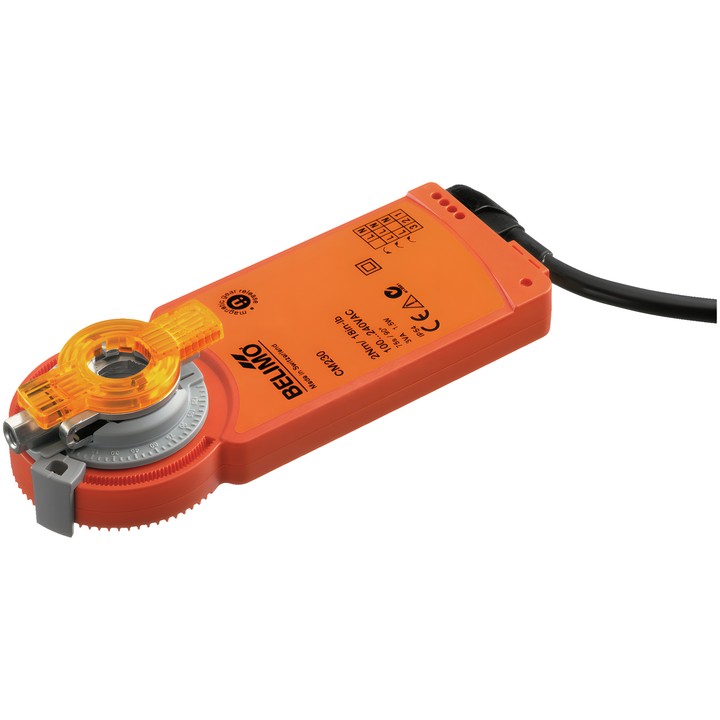

Belimo CM230G-R - 2 Nm damper actuator

Name: Belimo CM230G-R - 2 Nm damper actuator
Brand: Belimo
SKU: CM230G-R
Price: 840.09 PLN
Availability: OutOfStock

Belimo

zł840.09

VAT included

zł683.00 tax excluded

The Belimo CM230G-R damper actuator delivers a torque of 2 Nm and is powered by AC 100...240 V. It supports Open/Close and 3-point control; motor running time is 75 s / 90°.

Features a universal clamp 6...12.7 mm, a mechanical position indicator and manual override using a magnet. IEC/EN protection rating: IP66.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo CM230G-R damper actuator

The CM230G-R is used to position dampers in technical building systems. The technical data sheet specifies a damper size of up to approx. 0.4 m².

Key features and specifications

Motor torque: 2 Nm.
Nominal voltage: AC 100...240 V; frequency: 50/60 Hz.
Control: Open/Close, 3-point.
Motor running time: 75 s / 90°; direction of rotation: clockwise (cw).
Angle of rotation: 0...287.5°; adjustment using mechanical end stops.
Power consumption during operation: 1.5 W; at rest: 1 W; power for wire sizing: 3 VA.
Power and control connection: 1 m cable, 3x 0.75 mm².
Mechanical connection: universal clamp 6...12.7 mm.
Manual override using a magnet; mechanical, plug-in position indicator.
IEC/EN protection rating: IP66; IEC/EN protection class: II, reinforced insulation.
Ambient temperature: -30...50°C [-22...122°F].

The actuator is mounted directly on the damper shaft and secured with the anti-rotation clip Z-ARCM, included with the product. To ensure IP66 protection, the back of the device must fit tightly against the damper housing. When installed rotated by 180°, only IP54 protection is guaranteed.
