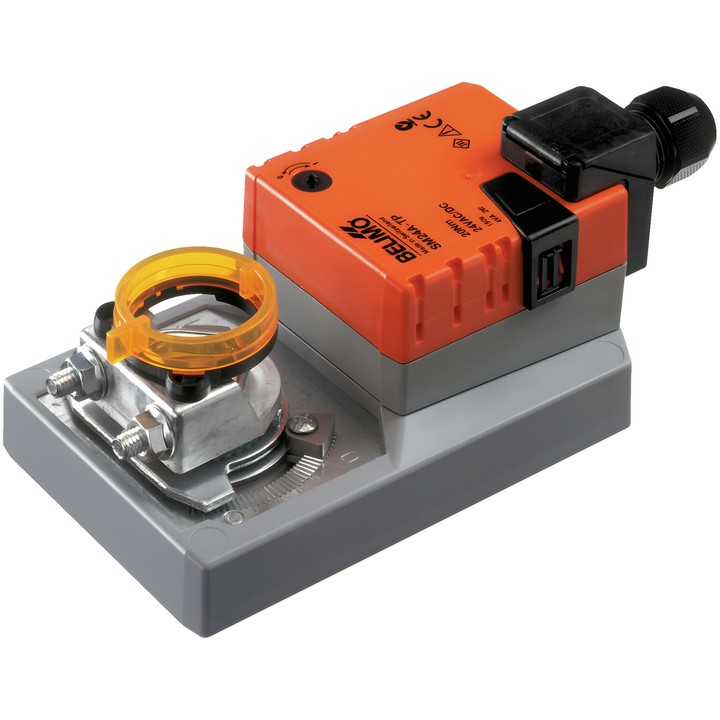

Belimo SM24A-TP damper actuator with 20 Nm torque, powered by AC/DC 24 V. Supports Open/Close and 3-point control; motor running time is 150 s / 90°.

Equipped with a reversible universal mounting clamp 10...20 mm, electrical terminals and manual override by push-button with locking option.

Delivery in approx. 14 days
Share

Belimo SM24A-TP – damper actuator

Actuator designed to position dampers in stationary heating, ventilation and air conditioning installations. Documentation specifies a damper size of up to approx. 4 m².

Key features and specifications

  • Torque: 20 Nm; rated voltage: AC/DC 24 V; rated voltage frequency: 50/60 Hz.
  • Control: Open/Close, 3-point; motor running time: 150 s / 90°.
  • Direction of rotation selected by switch 0 (counter-clockwise) / 1 (clockwise).
  • Angle of rotation: max. 95°; can be limited on both sides using adjustable mechanical stops.
  • Manual override by push-button with locking option; mechanical, plug-in position indicator.
  • Mechanical connection: reversible universal mounting clamp 10...20 mm.
  • Power and control connection: terminals 4 mm² (cable ø4...10 mm, 3-core).
  • Power consumption during motion: 2 W; at rest: 0.2 W; sizing power: 4 VA.
  • Degree of protection IEC/EN: IP54; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).
  • Ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    SM24A-TP
  • EAN13
    7630498114526

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    2 W
  • Power consumption (holding)
    0.2 W
  • Rated power
    4 VA
  • Power supply control connection
    Terminals 4 mm² (cable ø4...10 mm, 3-core)
  • Control type
    Open/close, 3-point
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    150 s / 90°
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    20 Nm
  • Direction of movement - motor
    Selectable via switch: 0 (rotation to the left) / 1 (rotation to the right)
  • Rotational angle
    95°
  • Mechanical connection
    Reversible universal mounting clamp 10...20 mm

Techniczna karta katalogowa

Download (1.81MB)

Instrukcja montażu

Download (203.34KB)

EU Declaration of Conformity – SM24A-TP

Download (32.76KB)

Environmental Declaration – SM..

Download (72.47KB)
