Belimo CM24-SR-R - analogue control damper actuator

Belimo CM24-SR-R - analogue control damper actuator

Belimo
zł554.63
VAT included
zł450.92 tax excluded

Belimo CM24-SR-R damper actuator with a torque of 2 Nm, powered by AC/DC 24 V. Modulating control 2...10 V and position feedback signal 2...10 V.

Running time is 75 s / 90°, and the IEC/EN protection rating is IP54. The actuator is designed to control dampers in building services installations.

Delivery in approx. 14 days
Share

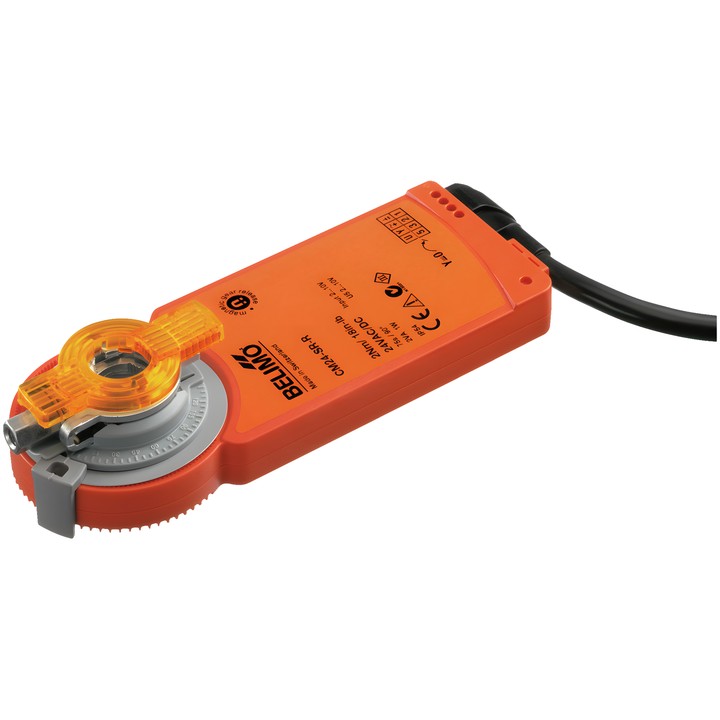

Belimo CM24-SR-R damper actuator

Modulating actuator for positioning dampers in building services installations. According to the technical data sheet, it is designed for air dampers with an area of up to approx. 0.4 m².

Key features and specifications

  • Torque: 2 Nm; rated voltage: AC/DC 24 V.
  • Operating range of control signal Y: 2...10 V; position feedback signal U: 2...10 V.
  • Motor running time: 75 s / 90°; rotation angle: 95°, fixed setting, with mechanical end stops.
  • Motor direction: clockwise (cw). Manual adjustment is possible using a magnet.
  • Mounting on the damper shaft using a universal clamp 6...12.7 mm; Z-ARCM anti-rotation clip included.
  • Power and control connection: 1 m cable, 4x 0.75 mm².
  • Power consumption during operation: 1 W; in rest position: 0.5 W; for cable sizing: 1.5 VA.
  • IEC/EN protection rating: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
  • Ambient temperature: -30...50°C [-22...122°F].

The actuator is protected against overload and stops automatically when the end stop is reached. Power must be supplied from an isolating transformer.

  • Brand
    Belimo
  • Reference
    CM24-SR-R
  • EAN13
    7630498110245

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    1 W
  • Power consumption (holding)
    0.5 W
  • Rated power
    1.5 VA
  • Power supply control connection
    Cable 1 m, 4x 0.75 mm²
  • Control type
    DC 2...10 V
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Using a magnet
  • Running time (motor)
    75 s / 90°
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    2 Nm
  • Direction of movement - motor
    clockwise rotation (cw)
  • Rotational angle
    95°
  • Mechanical connection
    Universal clamp 6...12.7 mm

Techniczna karta katalogowa

Download (927.76KB)

Instrukcja montażu

Download (578.09KB)

EU Declaration of Conformity – CM24-SR-R

Download (32.73KB)

Environmental Declaration – CM..

Download (72.45KB)
