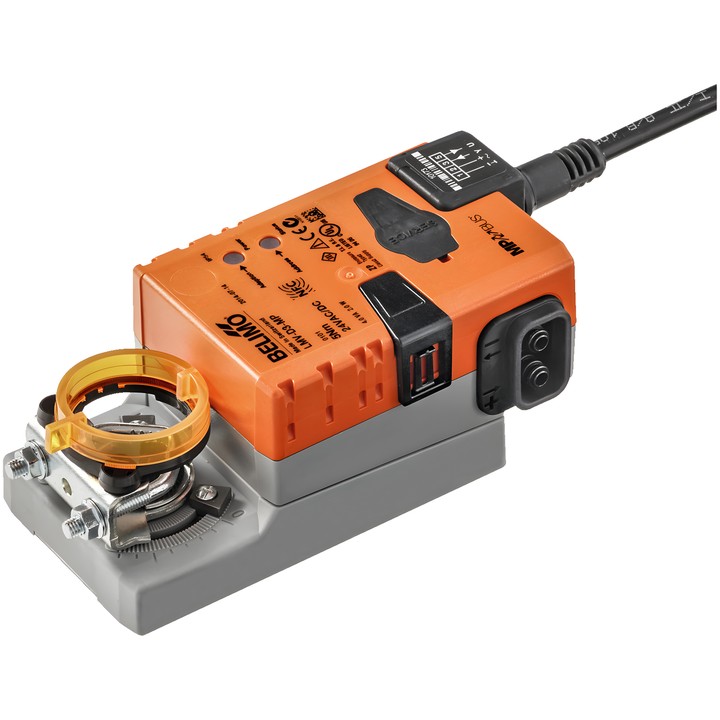

Belimo LMV-D3-MP - VAV-Compact airflow controller

Name: Belimo LMV-D3-MP - VAV-Compact airflow controller
Brand: Belimo
SKU: LMV-D3-MP
Price: 1712.16 PLN
Availability: OutOfStock

Belimo

zł1,712.16

VAT included

zł1,392.00 tax excluded

Belimo LMV-D3-MP is a VAV-Compact device featuring a VAV controller, a dynamic Δp sensor and a damper actuator with a torque of 5 Nm. Designed for VAV units in comfort zones; it supports VAV/CAV control and position control.

AC/DC 24 V power supply, MP-Bus communication and 0/2...10 V modulating control. The differential pressure measuring range is 0...500 Pa.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo LMV-D3-MP – VAV-Compact device

The device combines a VAV controller, a Belimo D3 dynamic differential pressure sensor and a damper actuator. It is designed for VAV units in comfort zones. It enables VAV/CAV airflow control or position control.

Key features and parameters

Torque: 5 Nm; rotation angle: 95°.
Power supply: AC/DC 24 V, 50/60 Hz; power consumption: 2 W while moving and 1 W in the rest position.
MP-Bus communication control and 0/2...10 V modulating control; operating range Y: 2...10 V.
Position feedback signal U: 2...10 V.
Belimo D3 dynamic differential pressure sensor; functional differential pressure range: 0...500 Pa.
Airflow settings: V'max 20...100% V'nom and V'min 0...100% V'nom (<V'max).
Manual override by button, with option to lock; mechanical position indicator.
Mechanical connection: universal clamp 6...20 mm; electrical connection: cable 1 m, 4x 0.75 mm².
NFC interface and service socket for configuration and operation using Belimo Assistant 2.
Degree of protection IEC/EN IP54; protection class IEC/EN III, Protective Extra-Low Voltage (PELV); ambient temperature: 0...50°C [32...122°F].
