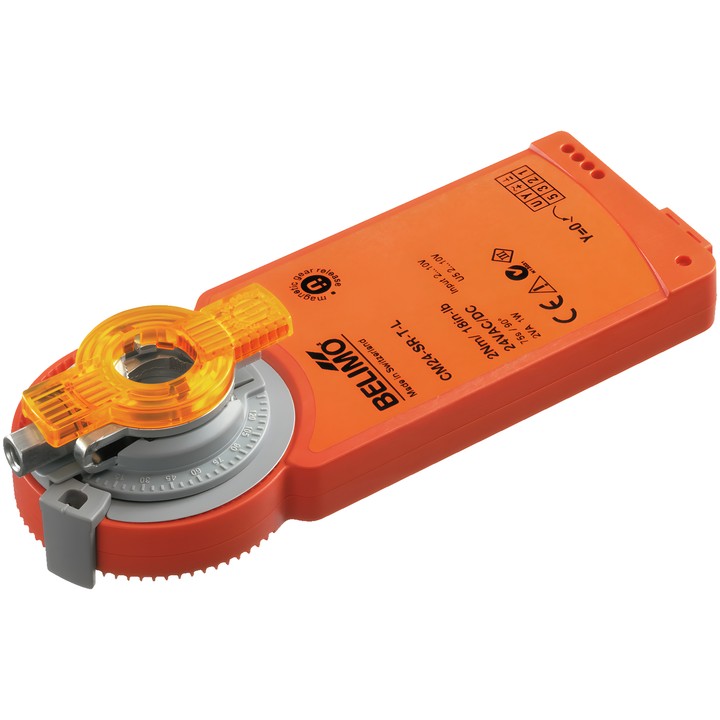

Belimo CM24-SR-T-R damper actuator with 2 Nm torque, AC/DC 24 V supply and 2...10 V modulating control. Running time is 75 s / 90°, and the feedback signal range is 2...10 V.

The model features connection terminals, a universal shaft clamp for 6...12.7 mm shafts, and manual adjustment using a magnet. IEC/EN protection rating: IP20.

Delivery in approx. 14 days
Share

Belimo CM24-SR-T-R – damper actuator

Modulating actuator for positioning dampers in technical building systems. According to the technical datasheet, it is designed for air dampers with an area of up to approx. 0.4 m².

Key specifications

  • Motor torque: 2 Nm.
  • Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
  • Operating range Y: 2...10 V; feedback signal U: 2...10 V.
  • Motor running time: 75 s / 90°; rotation angle: 95°, fixed setting.
  • Motor direction of rotation: clockwise (cw).
  • Manual adjustment using a magnet; mechanical position indicator.
  • Mechanical connection: universal shaft clamp for 6...12.7 mm shafts.
  • Power and control connection: terminals, Cu wire 1.5 mm² or Cu stranded wire 1.0 mm² (4-core).
  • Power consumption during operation: 1 W; at rest: 0.5 W; for cable sizing: 1.5 VA.
  • IEC/EN protection rating: IP20; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
  • Ambient temperature: -30...50°C [-22...122°F].

The actuator is mounted directly on the damper shaft and secured against rotation with the Z-ARCM clip supplied with the product. Mechanical stops allow the rotation angle to be adjusted.

  • Brand
    Belimo
  • Reference
    CM24-SR-T-R
  • EAN13
    7630498110269

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    1 W
  • Power consumption (holding)
    0.5 W
  • Rated power
    1.5 VA
  • Power supply control connection
    Terminals Solid copper wire 1,5 mm² or stranded 1,0 mm² (4-core)
  • Control type
    DC 2...10 V
  • Protection rating
    IP20
  • NEMA protection rating
    NEMA 1
  • Enclosure type
    UL Enclosure Type 1
  • Manual override
    Using a magnet
  • Running time (motor)
    75 s / 90°
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    2 Nm
  • Direction of movement - motor
    clockwise rotation (cw)
  • Rotational angle
    95°
  • Mechanical connection
    Universal clamp 6...12.7 mm
