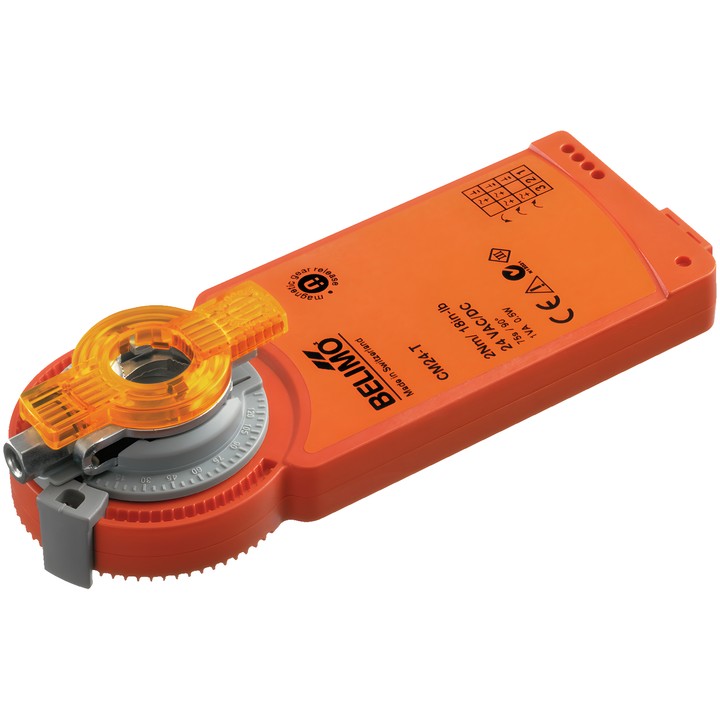

Belimo CM24-T-L - damper actuator

Belimo CM24-T-L damper actuator

Actuator designed to position air dampers in building services installations. According to the technical data sheet, it is intended for dampers with an area of up to approx. 0.4 m².

Key features and specifications

• Torque: 2 Nm.
• Nominal voltage: AC/DC 24 V; frequency: 50/60 Hz.
• Control: 3-point Close/Open.
• Motor running time: 75 s / 90°; direction of rotation: counterclockwise (ccw).
• Rotation angle: 0...287.5°; adjustment using mechanical end stops.
• Mechanical connection: universal clamp for 6...12.7 mm shafts.
• Power and control connection: terminals for 1.5 mm² solid or 1.0 mm² stranded copper wire (3-core).
• Manual adjustment using a magnet; mechanical position indicator.
• Power consumption during operation: 0.5 W; at rest: 0.2 W; sizing power: 1 VA.
• IEC/EN degree of protection: IP20; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
• Ambient temperature: -30...50°C [-22...122°F].

The actuator is mounted directly on the damper shaft and secured against rotation using the Z-ARCM clip supplied with the set.
